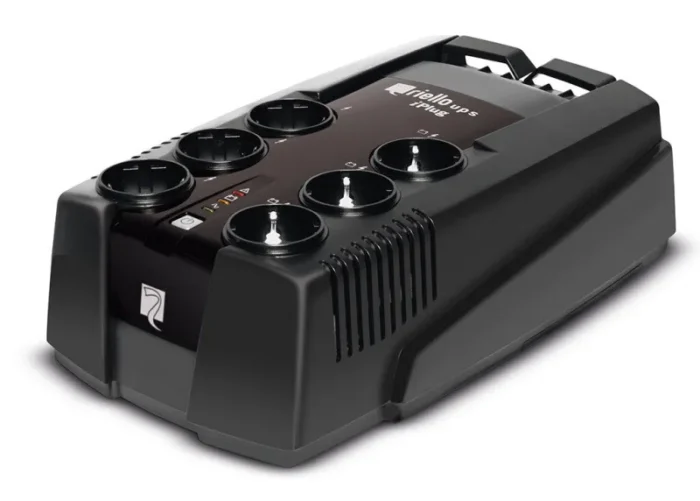

Riello iPlug IPG 800 uninterruptible power supply (UPS) 0.8 kVA 480 W 6 AC outlet(s)
- ECO LINE energy efficient product
- Compact, ergonomic design
- 5 sockets with battery backup
- 3 sockets with surge protection only
- Cold start capability to power up the UPS without mains power
- User replaceable batteries
- USB interface for remote monitoring
- Power cable included
- Protection from short-circuits
- Auto restart – when the mains returns after battery exhaustion
- GS/Nemko safety marking
- Available with French (2P+T), English, Schuko and Italian outlets
Versatile, robust and contemporary design.
The iPlug series is the ideal solution for household, and small home office systems. Its compact size and versatility – push-button operation, LED status panel and user-replaceable batteries – make iPlug easy to install within a domestic environment to protect systems from surges and blackouts. When mains power fails the load is powered by the inverter and built-in battery. PowerShield³ UPS monitoring and control software can be used for an orderly unattended shutdown of IT systems.
Features |
Number of output phases |
1 |
Number of input phases |
1 |
Output frequency |
50/60 Hz |
Output operation voltage (max) |
240 V |
Output operation voltage (min) |
220 V |
Input frequency |
50/60 Hz |
Input operation voltage (max) |
240 V |
Input operation voltage (min) |
220 V |
Output power |
480 W |
Output power capacity |
0.8 kVA |
Ports & interfaces |
USB 2.0 ports quantity |
1 |
USB port |
Yes |
AC outlets quantity |
6 AC outlet(s) |
Power plug |
C13 coupler |
Battery |
Battery recharge time |
8 h |
Number of batteries supported |
1 |
Battery technology |
Sealed Lead Acid (VRLA) |
Design |
LED indicators |
Yes |
Control type |
Buttons |
Product colour |
Black |
Form factor |
Compact |
Operational conditions |
Operating relative humidity (H-H) |
5 – 95% |
Operating temperature (T-T) |
0 – 40 °C |
Packaging content |
Quick installation guide |
Yes |
Cables included |
Input power cable |
Certificates |
Certification |
EMC 2014/30/UEIEC EN 62040-1EMC IEC EN 62040-2RoHS |
Weight & dimensions |
Weight |
4.1 kg |
Height |
99 mm |
Depth |
313 mm |
Width |
185 mm |
