Seagate Exos E 5U84 disk array Rack (5U) Black, Metallic
- Rack (5U) Black, Metallic
- USB connectivity Hot-swap drive bays
- 2200 W
Exos E 5U84

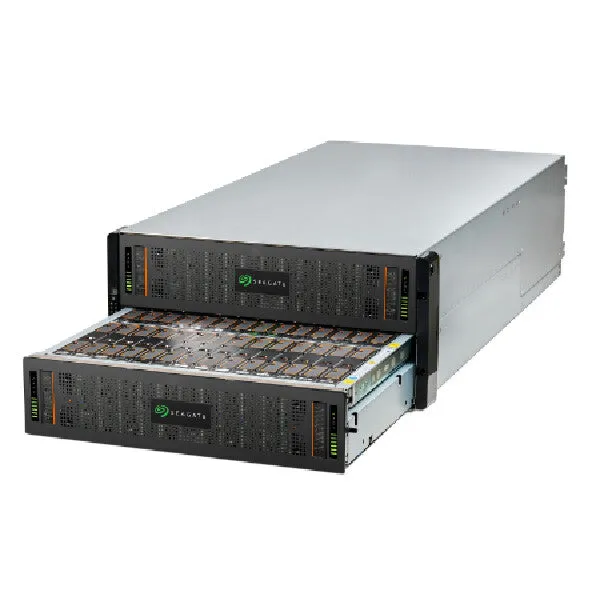

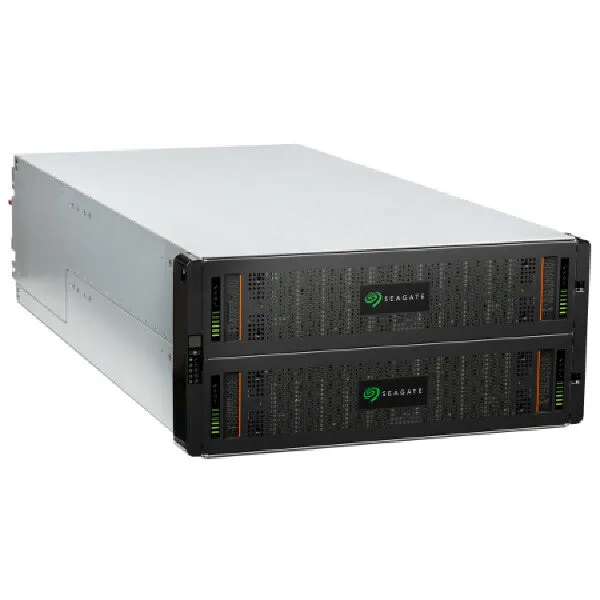

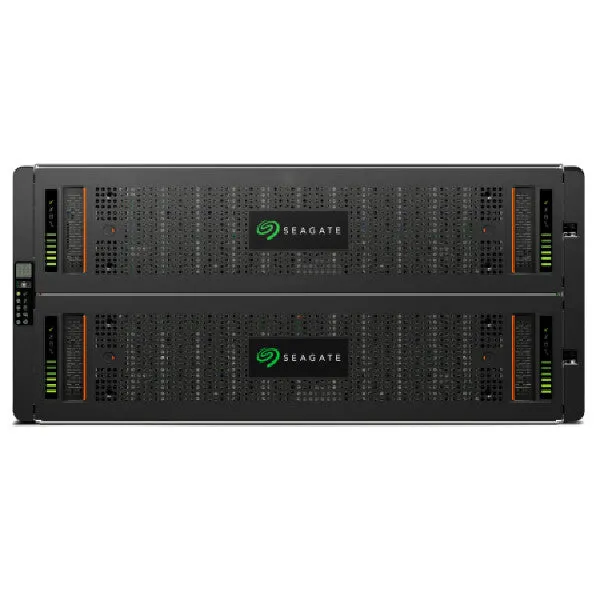

Seagate® Exos™ E 5U84 is the datasphere’s high-capacity, high performance platform that can handle extreme data growth. Build exabyte-scale data centers with this 5U, high density rackmount enclosure and easily manage in the field with features such as the unique drawer design allowing easy access to drives.
| Storage |
| Hot-swap drive bays |
Yes |
| Data transfer rate |
7 Gbit/s |
| RAID levels |
0, 1, 3, 5, 6, 10, 50 |
| Storage drive sizes supported |
3.5″ |
| Supported storage drive interfaces |
SAS |
| Storage drive size |
3.5″ |
| Storage drive interface |
NL-SAS, Serial Attached SCSI (SAS) |
| Maximum supported storage capacity |
1008 TB |
| Supported storage drive types |
HDD & SSD |
| Installed storage drive type |
No |
| Storage drives installed |
No |
| Ports & interfaces |
| Remote management port |
RJ-45 (Gigabit) |
| RJ-45 ports quantity |
2 |
| SFP+ module slots quantity |
8 |
| USB connectivity |
Yes |
| Design |
| Hot-swap fan module |
Yes |
| Cooling |
Yes |
| LED indicators |
Yes |
| Product colour |
Black, Metallic |
| Chassis type |
Rack (5U) |
| Power |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
180 – 240 V |
| Number of power supply units |
2 |
| Power supply unit (PSU) capacity |
2200 W |
| Weight & dimensions |
| Weight |
135 kg |
| Height |
220 mm |
| Depth |
933 mm |
| Width |
483 mm |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 100% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Operating temperature (T-T) |
5 – 35 °C |
