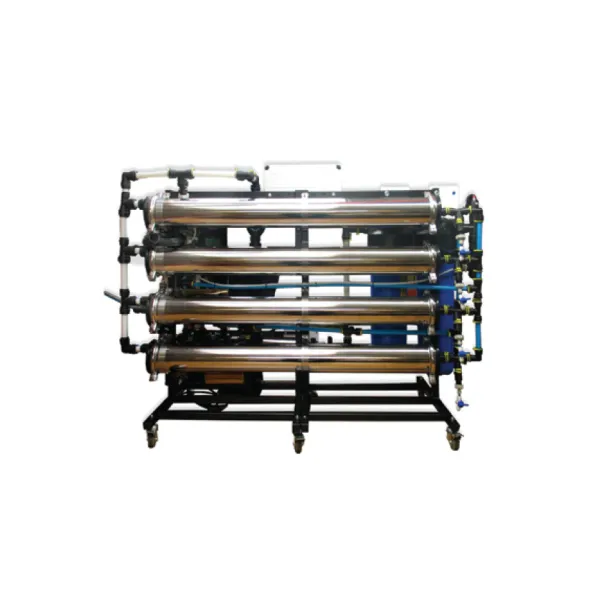

SPROMAX – Reverse Osmosis System – Commercial Use

SPROMAX – Reverse Osmosis System – Commercial Use

The PROMAX Reverse Osmosis system offers ground breaking advances in RO system design. Using the latest thin film composite (TFC) membrane technology – extra low-pressure membranes produce deionised water very efficiently resulting in minimum power usage and surprisingly low running costs.

The compact design of the ‘common rail’ frame and control panel has created a machine with varying capacities and capabilities at very favourable prices.

This machine has the following design features and requirements:

SPECIFICATIONS

• Output (Max): 1200 litres/hour
• Membranes: Extra Low Energy TFC / 4 x 4″ x 40″
• Rejection: 99.0% Stabilized Salt
• Recovery (Max): 75% – Adjustable
• Pre-Filtration: High-Capacity system included (additional pre-filtration available)
• Pump: Multi-stage centrifugal 240 VAC ~ 50Hz – 2.2kW with speed control
• System Control: Automatic – with adjustable settings
• Input Pressure: At least 2 bar (30 psi) is recommended
• Power: 240 VAC ~ 50Hz
• Phase: Single
• Amps: 8.3
• Capacitor uF: 30
• Inverter: PWM 230 D/9.3
• Controller: ROC-8221A
• Dimensions: 1420mm (L) x 1000mm (H) x 555mm (W)

CONSTRUCTION

• Frame: Strong Box Section Steel – powder coated
• Mobility: Lockable Castors (removable)
• Control Panel: Stainless Steel – 304
• Membrane Housings: Stainless Steel – 304
• Pump: 2.2kW Multi Stage Pump with Speed Control
• Pre-filtration: High-Capacity Big Blue Filter(s) – Other options available

CONTROLS AND INSTRUMENTATION

ROC-8221A RO Controller

• Fully automatic operation with user friendly LCD interface
• Dual conductivity Monitor displaying rejection %

          Inflow Water 0 – 2000uS/cm
          Product Water 0 – 200r 0-200uS/cm
          (Switched automatically)

          Automatic Temperature Compensation (5 to 50oC)
          Resolution 0.01mS/cm
          Accuracy + 2% F.S.

• Automatic flushing with adjustable duration
• Wide range of monitoring features with alarms

PWM Pump Controller

• Speed control for low power consumption
• Soft start to eliminate hydraulic stock
• Dry running, over current and over temperature protection

Other Controls

• Pressure Gauges: Feed water and pumped water (Glycoreyne filled)
• Flowmeters: Permeate and Concentrate flow monitoring
• Recycling: Adjustable for up to 75% recovery
• System Controller: Automatic with in-built TDS meter
• Automatic Flush: Periodic + Flush on Start/Stop

SYSTEM OPTIONS

Additional custom-built pre-filtration can be supplied including water softening systems for hard water areas.

FEED WATER REQUIREMENTS

This system is designed for use with clean pressurised water – recommended minimum water specification is detailed below

• Maximum Operating Temperature: 45oC (113oF)
• Maximum Operating Pressure: 120 psi (8 bar)
• pH Range: 2-11
• Maximum Feed Silt Density Index: SDI 5
• Free Chlorine Tolerance: <0.1ppm after carbon filtration
• Iron (Dissolved): <0.5ppm
• Maximum TDS: 500ppm

PRE-FILTRATION

In hard and medium water areas, a duplex water softener must be fitted. Additional pre-filtration may be required to control pollutants like chlorine (high levels) suspended solids and iron etc.

POST FILTRATION

Reverse Osmosis product water (permeate) can be post-treated to produce higher quality water – please contact your installer or Saniworld for further details.
