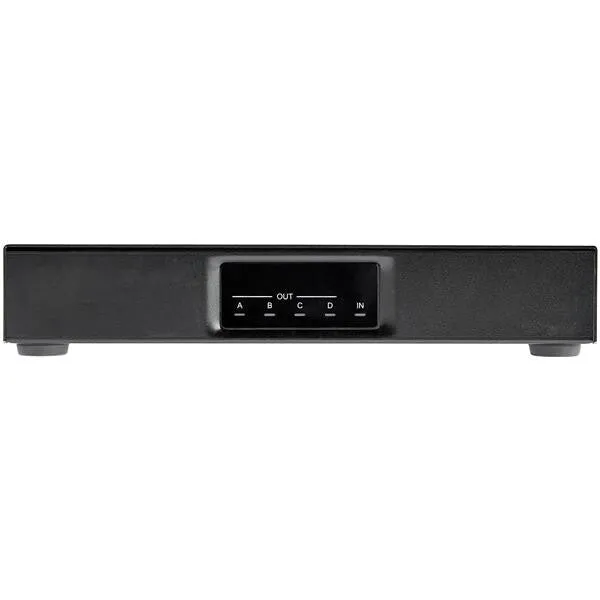

StarTech.com 2×2 HDMI Video Wall Controller – 4K 60Hz HDMI 2.0 Video Input to 4x 1080p Output – Video Wall Processor for Multi Screen Display – Video Wall Splitter – RS232/Ethernet Control
- 2×2 HDMI VIDEO WALL CONTROLLER: Hardware-based video wall processor can split & scale a 4K 60Hz (4096×2160) HDMI video input into 4x HDMI 1080p output signals to create a large image across 4 displays for digital signage; 7.1ch audio, HDCP 2.2/1.4
- EASY SETUP: The 2×2 video wall setup is pre-configured by default; HDMI video wall splitter w/ EDID emulation allows source video to be detected and properly split w/ the correct video format; Bezel compensation ensures accurate image display
- SERIAL & IP CONTROL: Features RS232 & Ethernet ports for input/output control & configuration features w/the Windows-only app, command line, Telnet/UDP; Various layouts: 2×2/1×1/1×4/mirror-duplication
- MOUNT ANYWHERE: Flexible environment/system setup with durable & ventilated metal housing; Built-in mounting brackets for wall/surface mount; Supports screw locking cables (HDMI & power); ESD protection
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; 4-screen video wall controller backed for 2-years by StarTech.com incl. free 24/5 North America based multi-lingual tech support
4K Video Wall Splitter | HDMI 2.0 | 1 Input 4 Outputs | 2-Year Warranty
This video wall controller lets you connect your HDMI video source to multiple HDMI displays, with support for Ultra HD resolutions and 7.1 surround sound audio. You can use the controller as a video splitter to distribute the same HDMI signal to four displays or you can combine your video source across four displays to create a 2×2 video wall.
Supports True 4K at 60Hz
Not all 2×2 video wall matrix controllers are created equal. While some HDMI 1.4 video wall controllers can achieve 4K resolutions, they’ll only work at a 30Hz refresh rate. This 4K 60Hz HDMI video wall processor offers full support for HDMI 2.0, including true 4K resolution at 60Hz.
Widely Compatible
The HDMI video wall splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs around your site or in your digital signage application.
Easy Installation and Setup
For hassle-free setup, the 4K HDMI splitter offers easy plug-and-play installation. Simply connect your source and 4 displays and the 4k video wall splitter will automatically create a video wall at the appropriate resolution.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The ST124HDVW is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
– 2×2 HDMI VIDEO WALL CONTROLLER: Hardware-based video wall processor can split & scale a 4K 60Hz (4096×2160) HDMI video input into 4x HDMI 1080p output signals to create a large image across 4 displays for digital signage; 7.1ch audio, HDCP 2.2/1.4
– EASY SETUP: The 2×2 video wall setup is pre-configured by default; HDMI video wall splitter w/ EDID emulation allows source video to be detected and properly split w/ the correct video format; Bezel compensation ensures accurate image display
– SERIAL & IP CONTROL: Features RS232 & Ethernet ports for input/output control & configuration features w/the Windows-only app, command line, Telnet/UDP; Various layouts: 2×2/1×1/1×4/mirror-duplication
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| RS-232 ports | 1 |
| RJ-45 input ports | 1 |
| USB port type | USB Type-A |
| Number of HDMI outputs | 4 |
| Video port type | HDMI |
| Features | |
|---|---|
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 4096 x 2160 |
| LED indicators | Yes |
| Audio output channels | 7.1 channels |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
| Product colour | Black |
| Material | Metal |
| Power | |
|---|---|
| AC adapter output current | 1.25 A |
| AC adapter output voltage | 24 V |
| AC adapter input current | 1 A |
| AC input voltage | 100 – 240 V |
| Certificates | |
|---|---|
| Certification | CE, FCC, REACH |
| Weight & dimensions | |
|---|---|
| Width | 165 mm |
| Packaging data | |
|---|---|
| Package height | 70 mm |
| Package depth | 300 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 90% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case height | 380 mm |
| Master (outer) case length | 545 mm |
| Master (outer) case width | 315 mm |
| Harmonized System (HS) code | 85176990 |
