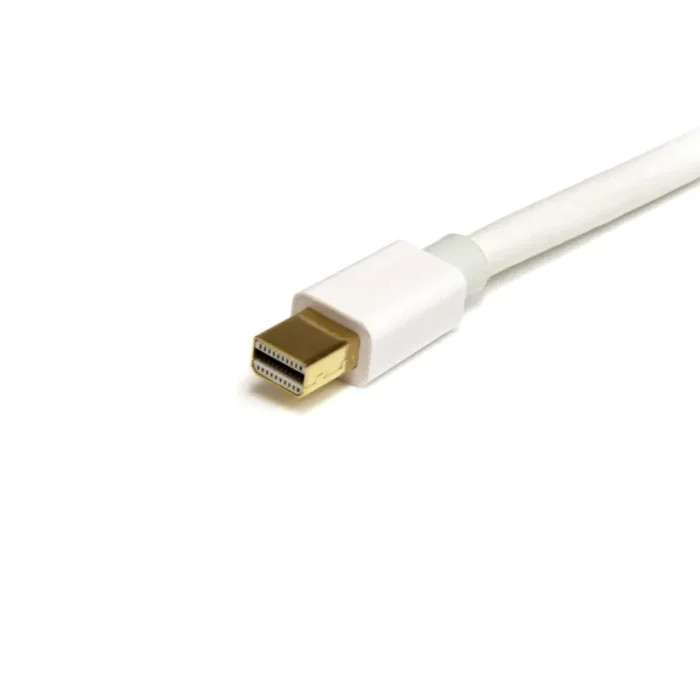

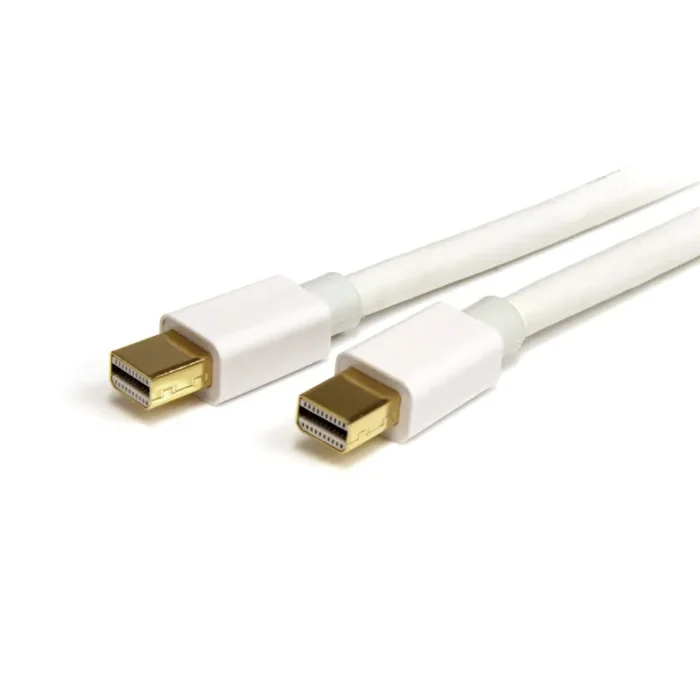

StarTech.com 3ft (1m) Mini DisplayPort Cable – 4K x 2K Ultra HD Video – Mini DisplayPort 1.2 Cable – Mini DP to Mini DP Cable for Monitor – mDP Cord works w/ Thunderbolt 2 Ports – White
- COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
- MINI DISPLAYPORT 1.2 CABLE: This 3.3ft (1m) Mini DisplayPort v1.2 cable supports 4K x 2K video (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
- QUALITY CONSTRUCTION: 30AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.1
- SPECS: 3.3ft (1m); White Mini DP Cable; DisplayPort v1.2; mDP Male to mDP Male Cord; 30 AWG; PVC cable jacket, ABS connector shell; Shield: Al-Mylar foil with Braid; Protocols: HBR2, MST, GTC; Backed for Life
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and monitor
The MDPMM1MW 1m White Mini DisplayPort™ 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDPMM1MW is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
The StarTech.com Advantage
| Features | |
|---|---|
| Number of conductors | 19 |
| Multi-Stream Transport (MST) | Yes |
| Plug and Play | Yes |
| Bandwidth | 21600 MB/s |
| AWG wire size | 32 |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shielding | Aluminum mylar foil |
| Cable rating | CMG (CM) |
| Product colour | White |
| DisplayPort Content Protection (DPCP) | Yes |
| HDCP | Yes |
| Maximum refresh rate | 120 Hz |
| Supported graphics resolutions | 3840 x 2400, 2560 x 1600 (WQXGA) |
| Maximum resolution | 3840 x 2400 pixels |
| DisplayPort version | 1.2 |
| Connector contacts plating | Gold |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | mini DisplayPort |
| Connector 1 | mini DisplayPort |
| Cable length | 1 m |
| Certificates | |
|---|---|
| Compliance certificates | RoHS, CE |
| Weight & dimensions | |
|---|---|
| Weight | 43 g |
| Packaging data | |
|---|---|
| Package weight | 43 g |
| Package height | 10 mm |
| Package depth | 200 mm |
| Package width | 220 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case height | 255 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case width | 360 mm |
| Harmonized System (HS) code | 84733080 |
