StarTech.com 5 Pack – 2.5” SDD/HDD Mounting Bracket for 3.5 Drive Bay
- TOOL-LESS INSTALLATION: Use this 5-pack of 2.5in HDD / SSD mounting brackets to easily install one or multiple 2.5 inch hard drives (HDDs) or solid-state drives (SSDs) into a 3.5 inch drive bay on your desktop PC without the need of tools
- SAVE TIME: Helping to save valuable time and effort on installation projects, this 5-pack of 2.5in mounting adapters is ideal for IT professionals needing to install a 2.5in drive into a 3.5in bay
- BROAD COMPATIBILITY: This 2.5in HDD / SSD mount is compatible with most 2.5in SSD / HDD drives including: IDE, SAS, SATA, U.2, U.3 and more, providing users with ultimate compatibility
- DRIVE HEIGHT RANGE: This 2.5in SSD / HDD mounting kit for 3.5 inch drive bay supports drives 7 mm or 9.5 mm in height
2.5″ Hard Drive Mount | Tool-less Installation

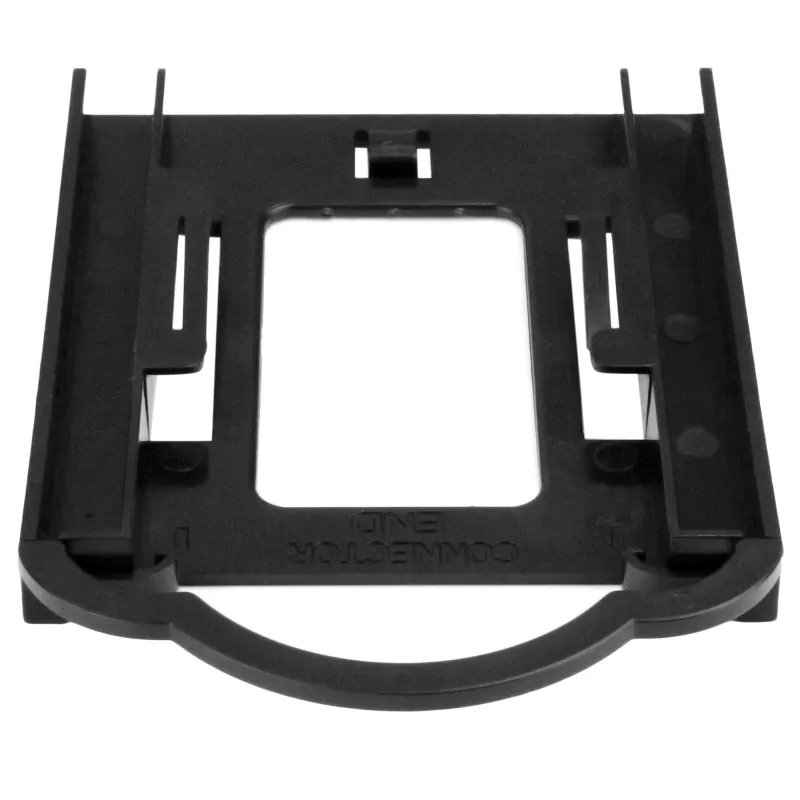

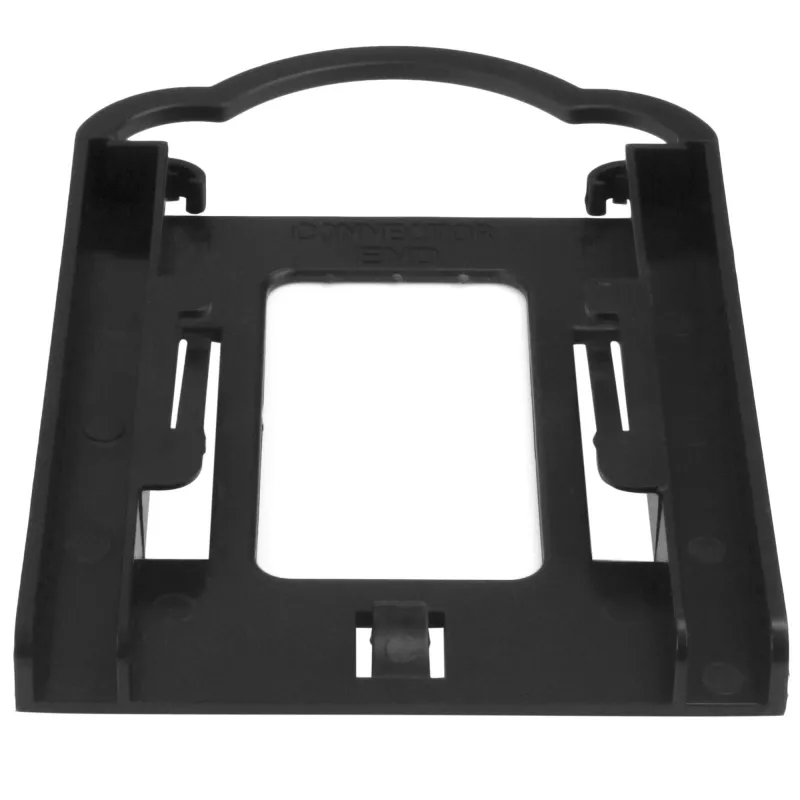

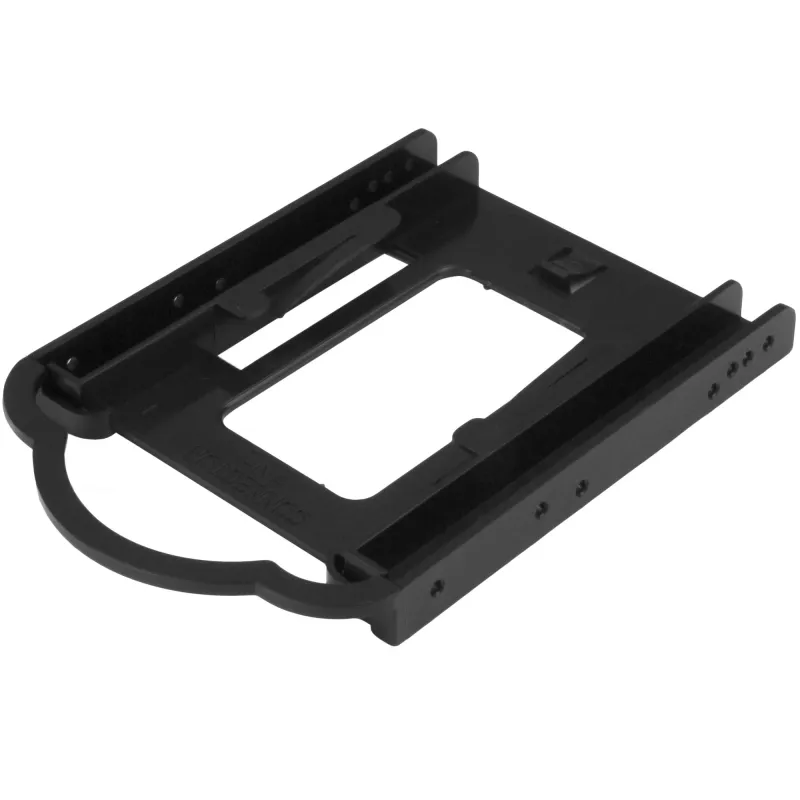

The 2.5” SDD / HDD Mounting Bracket for 3.5 Drive Bay now comes in a convenient 5-pack. This mounting bracket lets you quickly install a 2.5″ SSD or HDD into a single 3.5″ bay in a desktop PC or server, with no tools required. The tool-less mounting bracket supports a 2.5″ solid-state drive or hard drive from 7 mm to 9.5 mm in height.
Save Time with Easy, Tool-less Drive Installation
The mounting bracket’s tool-less design makes it fast and easy to install a 2.5″ drive in a computer or server, without the need for additional hardware or tools. It’s ideal for system administrators and integrators who are building or upgrading a computing solution for a wide range of businesses and organizations, including schools and hospitals, saving valuable time and effort on installation projects.
Designed for Trouble-free Use
The lightweight mounting bracket is designed for trouble-free, reliable performance. To install a drive, you simply secure it into the mounting bracket, without using tools. Then, you put the bracket into a 3.5″ drive bay in your computer and the bracket holds the drive in place using the tool-less plastic pegs.
The BRACKET125PTP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Features | |
|---|---|
| Supported storage drive heights | 7,9.5 mm |
| Material | Plastic |
| HDD interface | Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS) |
| HDD size | 2.5″ |
| Product colour | Black |
| Type | Carrier panel |
| Size (imperial) | 8.89 cm (3.5″) |
| Weight & dimensions | |
|---|---|
| Width | 102 mm |
| Depth | 150 mm |
| Height | 13 mm |
| Weight | 33 g |
| Packaging data | |
|---|---|
| Package weight | 40 g |
| Package depth | 95 mm |
| Package height | 110 mm |
| Package width | 156 mm |
| Packaging content | |
|---|---|
| Number of pegs | 30 |
| Quick start guide | Yes |
| Quantity per pack | 5 pc(s) |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 490 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 250 mm |
