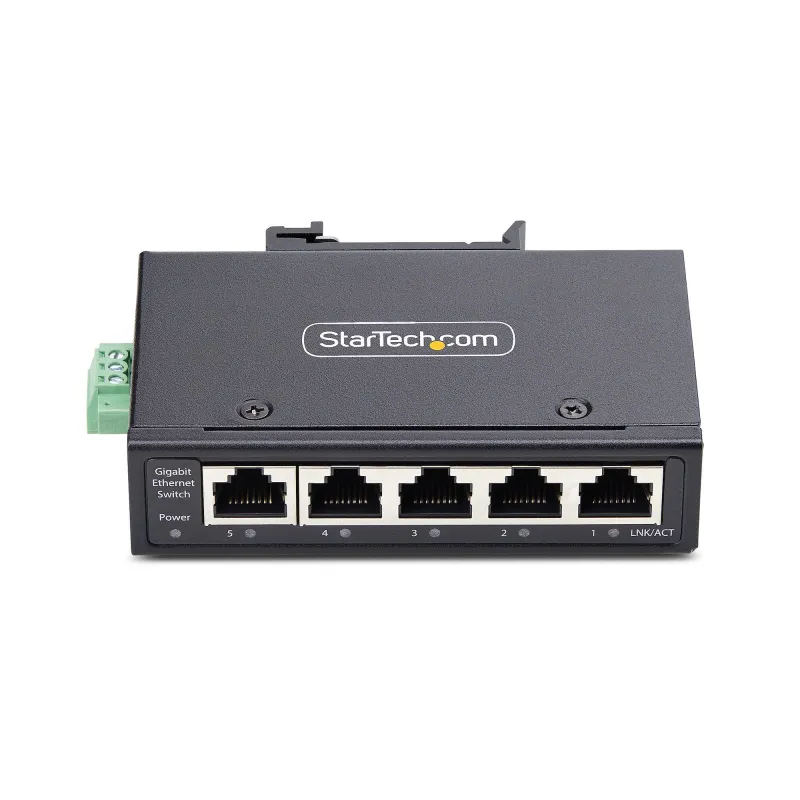

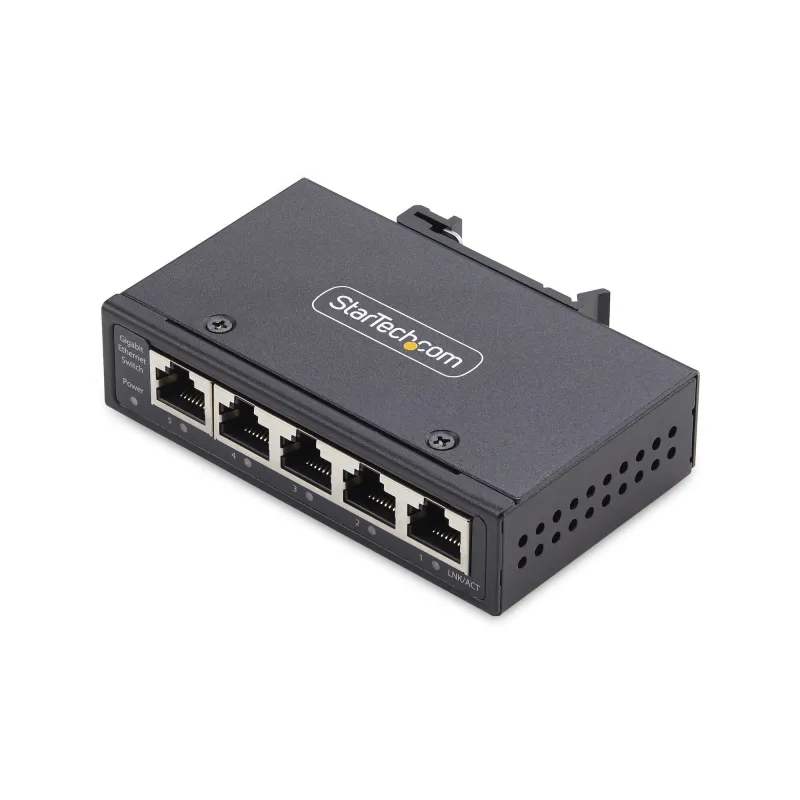

StarTech.com 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, Rugged IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compliant
- UNMANAGED 5-PORT GIGABIT SWITCH: Expand network connectivity with simple plug-and-play setup; 5x 10/100/1000Mbps RJ45 ports; Auto-negotiates speed; Level 4 ESD Protection; 3-Pin Terminal Block Power Input (9-60V DC); Fanless silent design; TAA Compliant
- DESIGNED FOR HARSH ENVIRONMENTS: IP30 Rated Unmanaged Industrial Ethernet Switch with Over Current Protection auto-negotiates speed; Rugged metal enclosure rated for an extended operating temp range: -40°F-167°F (40°C-75°C)
- ENHANCED NETWORK PERFORMANCE: Switching capacity of 10Gbps; 9K Jumbo Frame for reduced packet overhead; Quality of Service (QoS)/Broadcast Storm Protection (BSP) improves network performance; Front-facing diagnostic link/activity LEDs on each RJ45 port

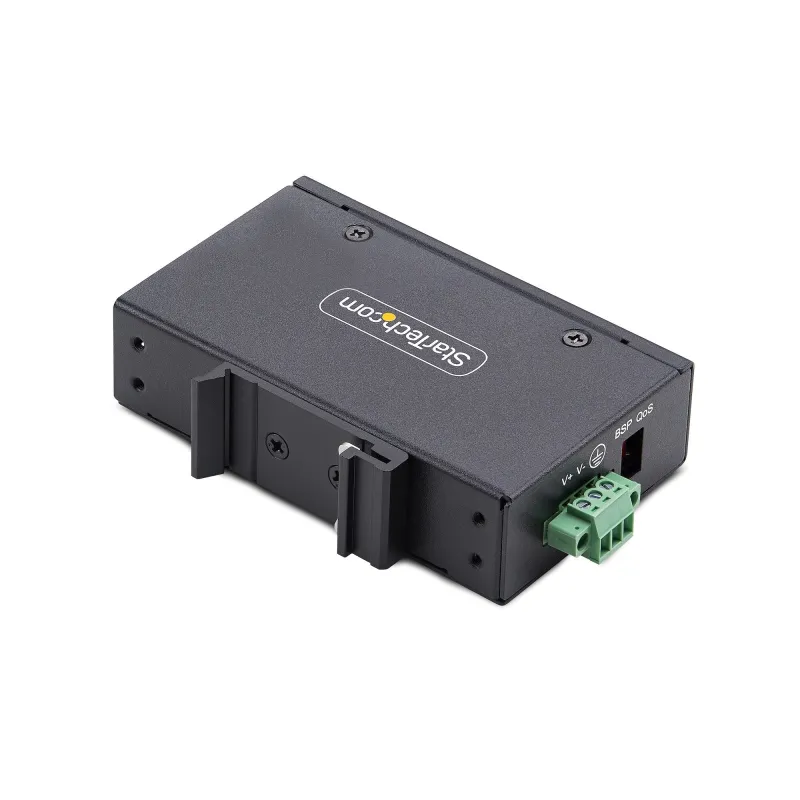

- VERSATILE MOUNTING OPTIONS: Compact case design uses minimal space when installed on or under a work surface; Wall or DIN Rail mountable using the included Mounting Ears or DIN Rail Mounting Kit
- INDUSTRIAL APPLICATIONS: Designed for demanding environments, including industrial settings & centralized control stations where device reliability is essential; Compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance
Expand your network connectivity with simple plug-and-play setup
This unmanaged, fanless network switch delivers silent, energy-efficient performance with five multi-speed Ethernet ports (10/100/1000 Mbps). Its durable all-metal casing ensures long-lasting reliability.
Enhance Your Network
Expand your network connectivity with simple plug-and-play setup. This network switch is ideal for large file transfers, streaming, network sharing and storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility.
Rugged TAA Switch
This TAA compliant unmanaged switch features an unintrusive design and small dimensions (3.9×2.3×1 inch / 100.5x60x 25.5mm). Key features such as 9K Jumbo Frames, 3-Pin Terminal Block Power Input, QoS IEEE 802.1p, and the included DIN Rail and Wall Mounting Kits give you the flexibility to use it in a multitude of scenarios. The rugged metal enclosure is IP30 rated to prevent objects larger than 2.5mm from getting inside and has an extended operating temperature range of -40°F-167°F (40°C-75°C). The clear diagnostic LEDs show the status of the devices at a glance.
Designed for Demanding Environments
This network switch is deal for industrial settings and centralized control stations where device reliability is essential and environmental conditions fluctuate. The compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance.
The StarTech.com Advantage
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Power connector | Terminal block (3-pin) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Design | |
|---|---|
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 556710 h |
| Power | |
|---|---|
| Input voltage | 9 – 60 V |
| Power supply included | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | -40 – 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 221.7 g |
| Height | 26 mm |
| Depth | 100 mm |
| Width | 60 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Packaging data | |
|---|---|
| Package weight | 293.7 g |
| Package height | 55 mm |
| Package depth | 159 mm |
| Package width | 107 mm |
| DIN rail included | Yes |
| Terminal block included | Yes |
| Mounting brackets included | Yes |
| Certificates | |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case height | 335 mm |
| Master (outer) case length | 295 mm |
| Master (outer) case width | 355 mm |
