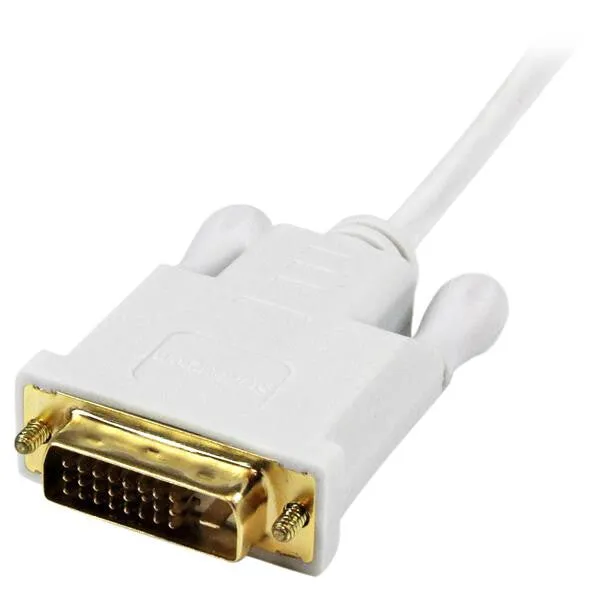

StarTech.com 6 ft Mini DisplayPort to DVI Active Adapter Converter Cable – mDP to DVI 1920×1200 – White
- 1.8 m
- Mini DisplayPort Straight Male
- DVI-D Straight Male
- 1920 x 1200 pixels
- White
- 1 pc(s)
Connect a Mini DisplayPort-equipped PC or MAC to a DVI display, with an active 6ft cable
The MDP2DVIMM6WS 6ft active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook or Microsoft Surface Pro devices with mDP) directly to a DVI monitor or projector, saving the expense of additional adapters. The converter also features a stylish white design, that is well-suited for connecting Mac computers.
For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM6WS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI Eyefinity cards.
Compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920 x 1200.
The MDP2DVIMM6WS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
The StarTech.com Advantage
– Hassle-free installation with cable-style adapter enabling you to connect your Mini DisplayPort source directly to a DVI display with no additional video cable required
– Save upgrade costs by connecting your Mini DisplayPort computer to a DVI monitor or Projector
– Well-suited for Mac computers, with uniform white design
| Features | |
|---|---|
| Converter type | Active |
| Plug and Play | Yes |
| Chipset | Parade – PS171 |
| Product colour | White |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Maximum resolution | 1920 x 1200 pixels |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DVI-D |
| Connector 1 | Mini DisplayPort |
| Cable length | 1.8 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 40 – 85% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 60 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC, REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Height | 15 mm |
| Depth | 1800 mm |
| Width | 40 mm |
| Weight | 129.3 g |
| Packaging data | |
|---|---|
| Package weight | 123 g |
| Package height | 20 mm |
| Package depth | 220 mm |
| Package width | 200 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
