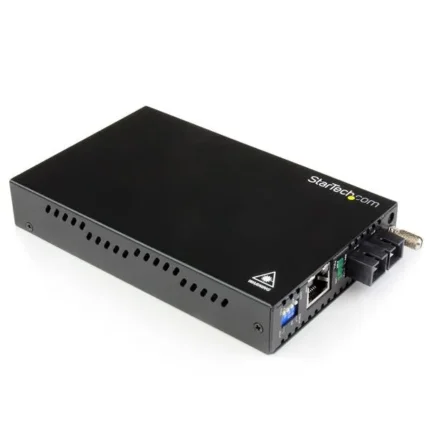

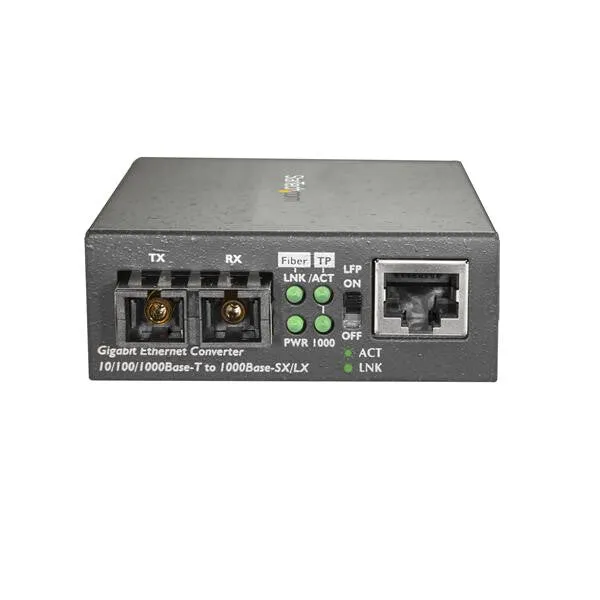

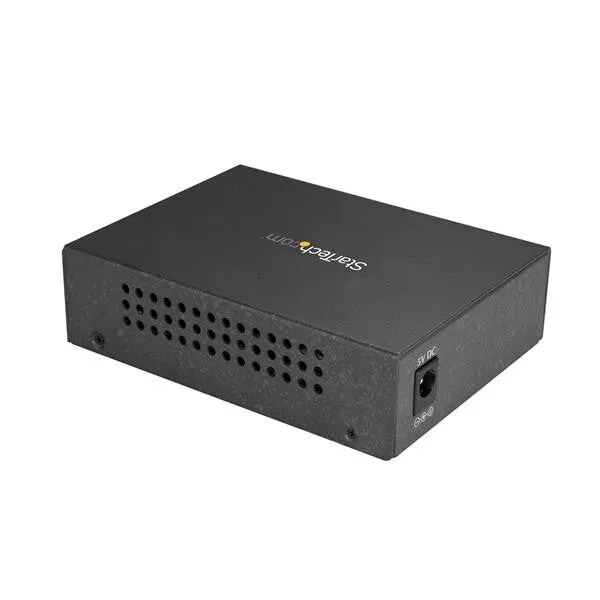

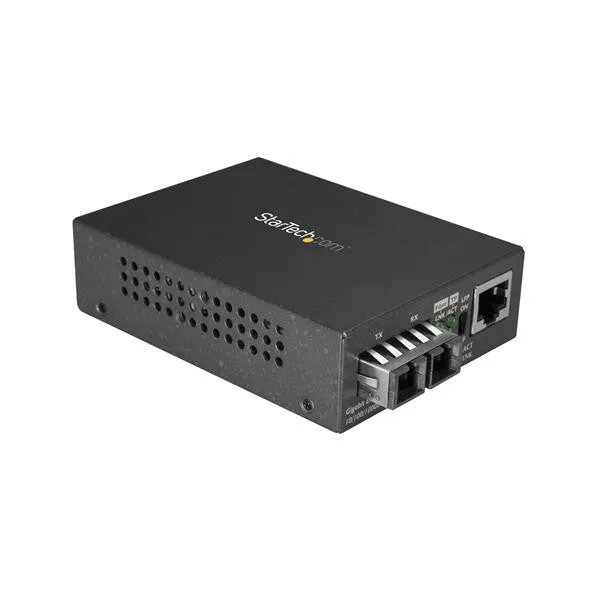

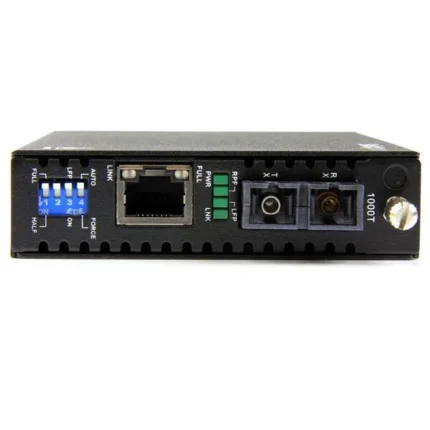

StarTech.com Gigabit Ethernet to SC Fiber Media Converter – 1000Base-LX – Single-mode – 10 km
- Wired
- 1000 Mbit/s 10000 m 1310 nm
- Ethernet LAN (RJ-45) ports: 1
- Single-mode Fiber ports quantity: 1 SC
- Black
Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber
This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Network | |
|---|---|
| Duplex system | Full |
| Store-and-forward | Yes |
| Auto MDI/MDI-X | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Converter output interface | 100Base-LX |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
| Fiber mode structure | Single-mode |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 1310 nm |
| Maximum transfer distance | 10000 m |
| Features | |
|---|---|
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power plug type | Type N |
| External power adapter | Yes |
| Output current | 2.6 A |
| Output voltage | 5 V |
| Input current | 0.5 A |
| Input voltage | 100 – 240 V |
| Weight & dimensions | |
|---|---|
| Weight | 196 g |
| Height | 26 mm |
| Depth | 70 mm |
| Width | 105 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 90% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Packaging data | |
|---|---|
| Package weight | 560 g |
| Package height | 66 mm |
| Package depth | 285 mm |
| Package width | 138 mm |
| Certificates | |
|---|---|
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
