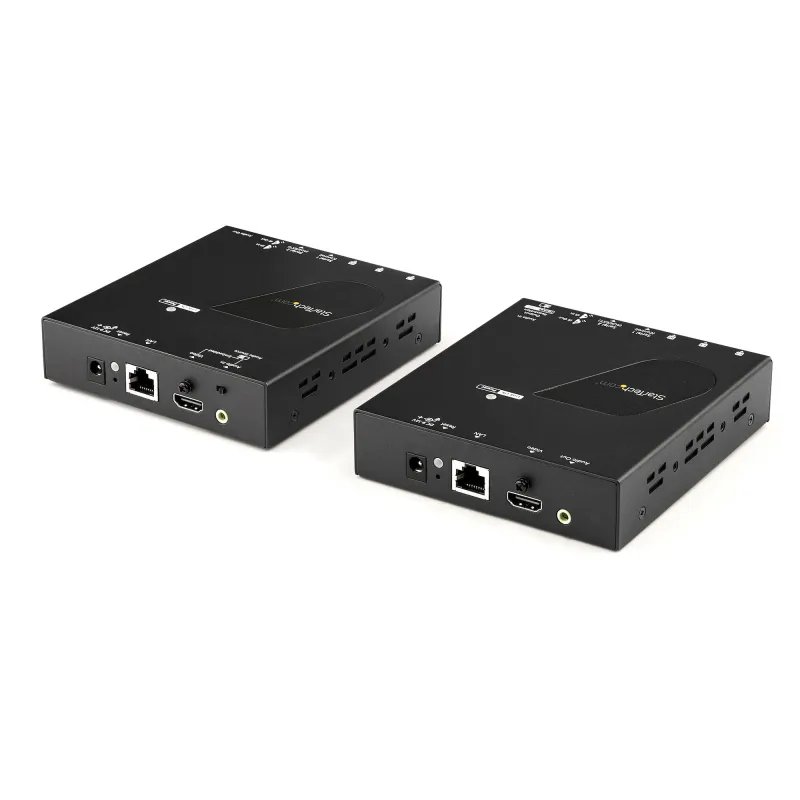

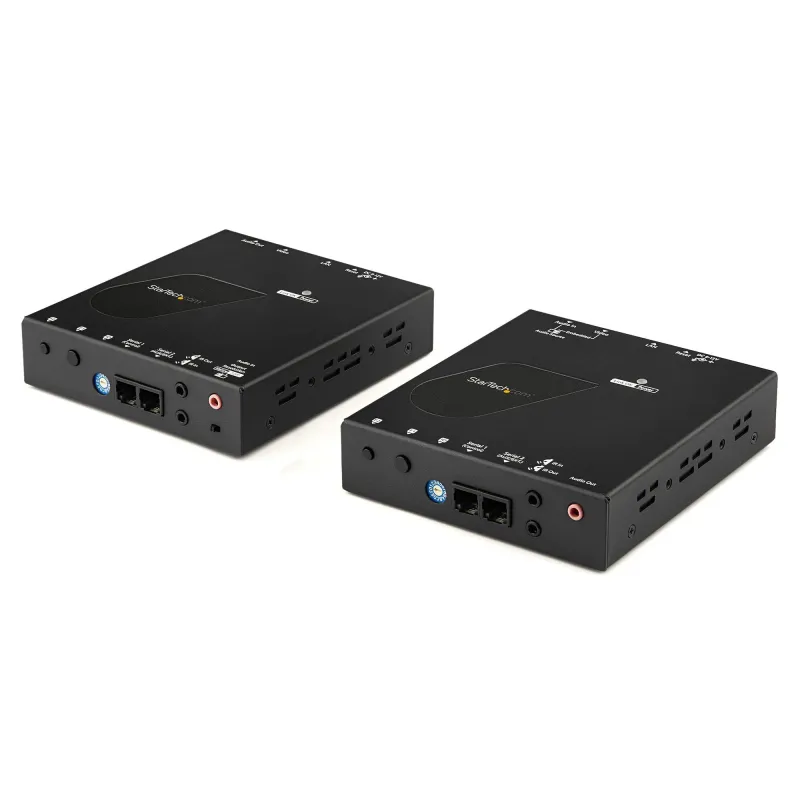

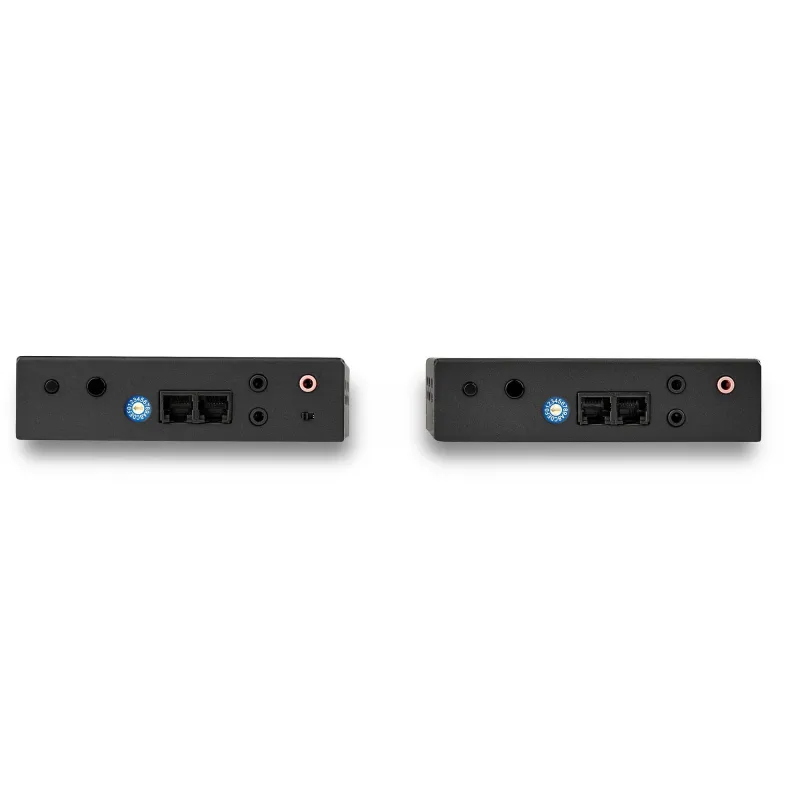

StarTech.com HDMI over IP Extender Kit with Video Wall Support – 1080p
- Scalable video distribution system extends your HDMI video signal and RS232 control to one or multiple displays
- Create stunning video walls easily using a single or multiple video source with multiple receivers
- Manage and control your digital signage with the intuitive mobile app
- Crystal-clear picture quality, video resolutions up to 1080p
- Tidy, professional installation with included mounting hardware
HDMI® Video over Cat5e or Cat6 |Multiple Sources to Multiple Displays | Mobile Control App
This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Resolutions up to 1080p, with Audio
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control Through a Free App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Features | |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Supported video modes | 720p, 1080p |
| Rubber feet | Yes |
| Daisy chain | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| LED indicators | Link, Network, Power, Status |
| Audio output channels | 7.1 channels |
| Maximum refresh rate | 60 Hz |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5e, Cat6 |
| Maximum resolution | 1920 x 1080 pixels |
| Type | AV transmitter & receiver |
| Ports & interfaces | |
|---|---|
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Audio input | 2 x 3.5 mm |
| Audio output | 2 x 3.5 mm |
| RJ-11 ports quantity | 4 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| RJ-45 output ports | 1 |
| RJ-45 input ports | 1 |
| Power | |
|---|---|
| Power plug type | Type M |
| External power adapter | Yes |
| Power consumption (typical) | 10 W |
| Output current | 1.5 A |
| Input current | 0.6 A |
| Operating voltage | 12 V |
| AC input voltage | 100 – 240 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Weight & dimensions | |
|---|---|
| Weight | 1.2 kg |
| Height | 31 mm |
| Depth | 131 mm |
| Width | 118 mm |
| Packaging data | |
|---|---|
| Package weight | 2.3 kg |
| Package height | 75 mm |
| Package depth | 365 mm |
| Package width | 235 mm |
| Packaging content | |
|---|---|
| IR blaster included | Yes |
| IR receiver included | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK, US |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| AC adapter included | Yes |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case height | 270 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case width | 385 mm |
