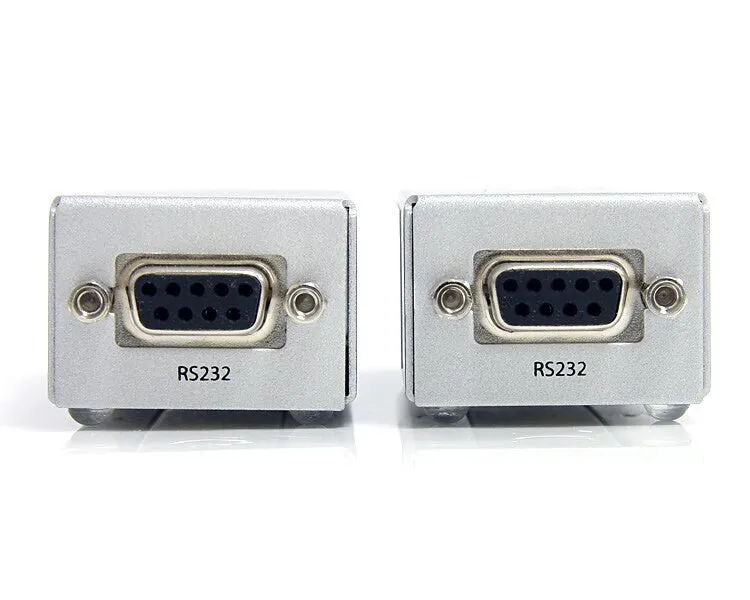

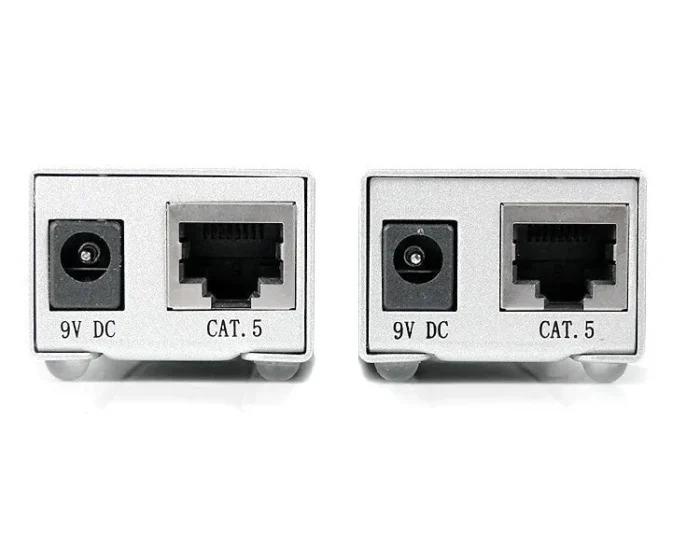

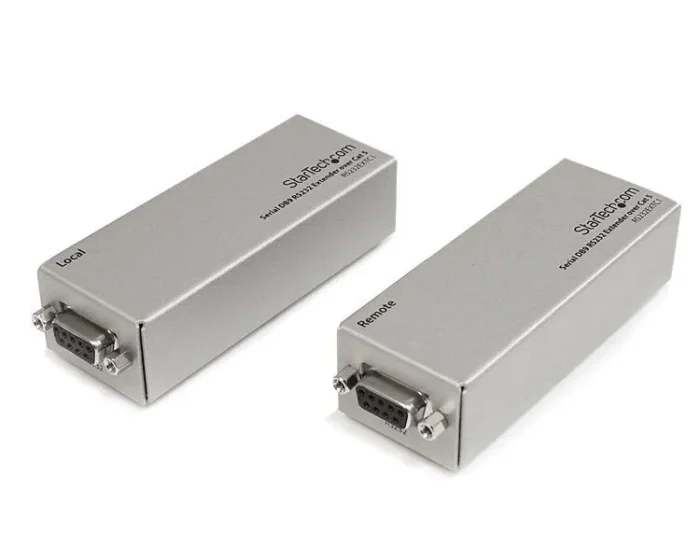

StarTech.com Serial DB9 RS232 Extender over Cat 5 – Up to 3300 ft (1000 meters)
- Extend RS232 up to 1000m / 3300ft
- Data transfer rates of up to 230 Kbps
- Compatible with all RS232 communications
- Employ existing Cat5, 5e, 6 or better Ethernet infrastructure to remotely connect serial devices
- Supports full-duplex data communication
- Compact design
- No driver software required for easy Plug-and-Play installation
Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling
The RS232EXTC1GB Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system – an incredible 65x greater than normal RS232 serial cable length restrictions would permit. The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling. Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Technical details |
| Plug and Play |
Yes |
| Cable types supported |
Cat5, Cat5e, Cat6 |
| Compliance certificates |
CE, RoHS |
| Product colour |
Silver |
| Maximum transfer distance |
1000 m |
| Data transfer rate |
0.23 Mbit/s |
| Type |
Console transmitter & receiver |
| Ports & interfaces |
| DC-in jack |
Yes |
| RJ-45 ports quantity |
2 |
| RS-232 ports |
2 |
| Weight & dimensions |
| Package weight |
1 kg |
| Package height |
138 mm |
| Package depth |
315 mm |
| Package width |
57 mm |
| Weight |
65 g |
| Height |
22 mm |
| Depth |
92 mm |
| Width |
34 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
0 – 85 °C |
| Operating temperature (T-T) |
0 – 70 °C |
| Packaging content |
| AC adapter included |
Yes |
| Manual |
Yes |
| Cables included |
Serial |
| Power |
| Power plug type |
Type M |
| Output current |
0.3 A |
| Output voltage |
9 V |
| Input current |
0.055 A |
| Input voltage |
100 – 240 V |
| Logistics data |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case height |
300 mm |
| Master (outer) case length |
328 mm |
| Master (outer) case width |
326 mm |
| Harmonized System (HS) code |
84733020 |
