StarTech.com USB 3.0 / eSATA Dual-Bay Trayless 3.5” SATA III Hard Drive Enclosure with UASP – 2-Bay SATA 6 Gbps Hot-Swap HDD Enclosure
- HDD enclosure Serial ATA, Serial ATA II, Serial ATA III 3.5″
- Number of storage drives supported: 2
- Hot-swap
- USB connectivity
- UASP support
- Key lock
- 6 Gbit/s
- Black
The S352BU33RER 2-Bay RAID enclosure lets you build an external RAID array with two 3.5” SATA hard drives, and connect to your computer through USB 3.0 or eSATA.
For fast performance and efficient data transfers, the enclosure supports SATA III transfer speeds — up to 6 Gbps when connected through eSATA. The versatile RAID enclosure can also be connected through USB 3.0, with support for UASP, performing up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.
The external RAID enclosure features a hardware RAID controller, supporting JBOD, Spanning, RAID 0, and RAID 1 — to achieve greater drive capacity, or secure data redundancy. The RAID controller is also front mounted for ease of access when changing your RAID mode.
For fast and easy drive installation and removal, the dual drive enclosure features a convenient trayless system that eliminates having to mount and fasten your drives, saving time and hassle.
To ensure compatibility with your computer system, the S352BU33RER supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The S352BU33RER is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
– Versatile connectivity options, through either USB or eSATA
– Maximize performance, with file transfer speeds up to 6Gbps using eSATA
– Achieve greater drive capacity or secure data redundancy with a built-in hardware RAID controller
| Storage | |
|---|---|
| Maximum storage capacity | 4 TB |
| Hot-swap | Yes |
| RAID levels | 0, 1, BIG, JBOD |
| Number of storage drives supported | 2 |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive size | 3.5″ |
| Ports & interfaces | |
|---|---|

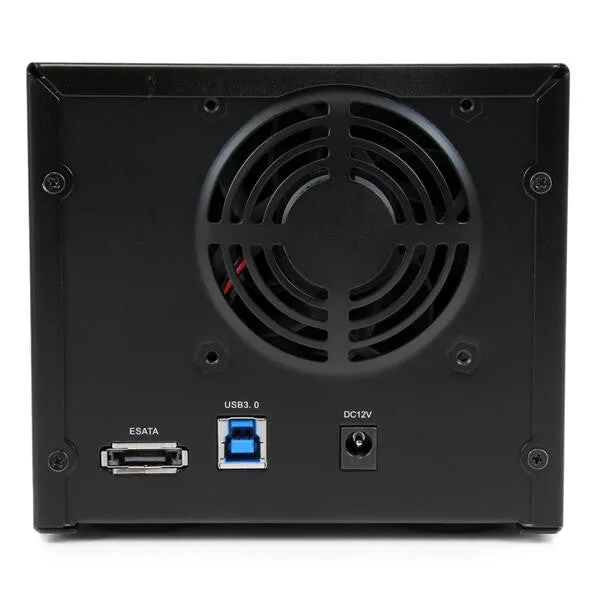

| eSATA ports quantity | 1 |
| USB connector gender | Female |
| USB connector type | USB Type-B |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connectivity | Yes |
| Design | |
|---|---|
| Certification | CE, FCC, REACH |
| Fan diameter | 7 cm |
| Number of fans | 1 fan(s) |
| Key lock | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Product type | HDD enclosure |
| Performance | |
|---|---|
| Port multiplier | Yes |
| Noise level | 26.24 dB |
| UASP support | Yes |
| Chipset | Jmicron – JM562 |
| Data transfer rate | 6 Gbit/s |
| Power | |
|---|---|
| AC adapter output voltage | 12 V |
| Compatible power plug types | EU, UK, US |
| AC adapter input voltage | 100 – 240 V |
| AC adapter output current | 3 A |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -20 – 50 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 2.9 kg |
| Package height | 187 mm |
| Package depth | 301 mm |
| Package width | 208 mm |
| Weight | 1.8 kg |
| Height | 118 mm |
| Depth | 215 mm |
| Width | 130 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | eSATA, USB |
| AC adapter included | Yes |
| Number of keys included | 2 pc(s) |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
