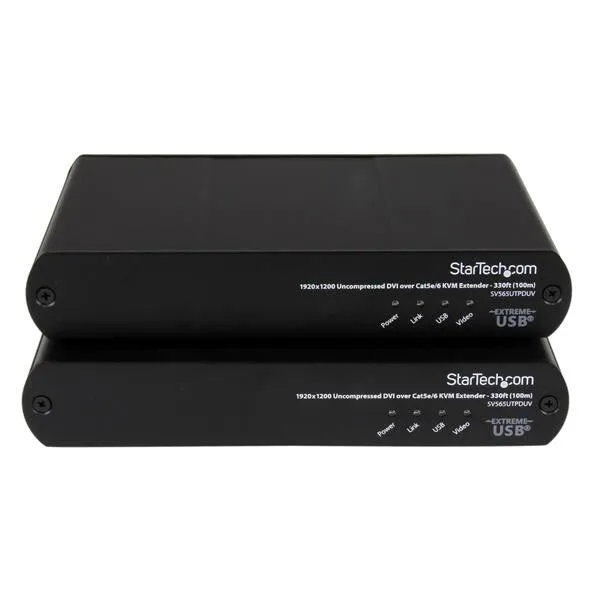

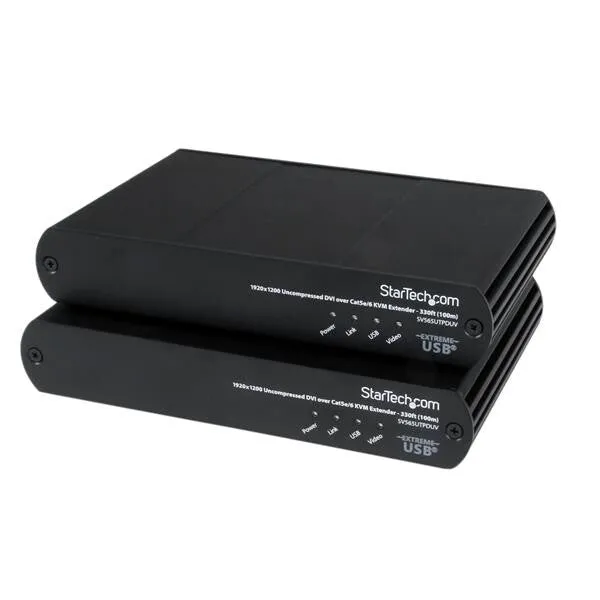

StarTech.com USB DVI over Cat 5e / Cat 6 KVM Console Extender w/ 1920×1200 Uncompressed Video – 330ft (100m)
- Console transmitter & receiver
- 30 Mbit/s
- Maximum transfer distance: 100 m
- Housing material: Aluminium
- DC-in jack
- Black
Operate a PC from up to 100m away, with uncompressed 1920×1200 DVI video and USB keyboard / mouse
The SV565UTPDUV USB DVI KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1920×1200 DVI video and access to up to 3 connected USB devices.
A flexible solution for powering large high-definition displays remotely, this DVI USB extender supports uncompressed 1920×1200 video resolution at maximum distance, with 24-bit color depth.
This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Power a large DVI display from a distance with uncompressed 1920×1200 video
– Operate a single system or KVM switch remotely through KVM console extension
– Save time and money by extending over an existing Cat 5e / Cat 6 infrastructure cabling
| Technical details | |
|---|---|
| IP control | No |
| Certification | CE, FCC, UL, REACH |
| Housing material | Aluminium |
| LED indicators | Link, Power, USB |
| Compliance certificates | RoHS |
| Rack mounting | No |
| Daisy chain | Yes |
| Product colour | Black |
| Maximum transfer distance | 100 m |
| Data transfer rate | 30 Mbit/s |
| Type | Console transmitter & receiver |

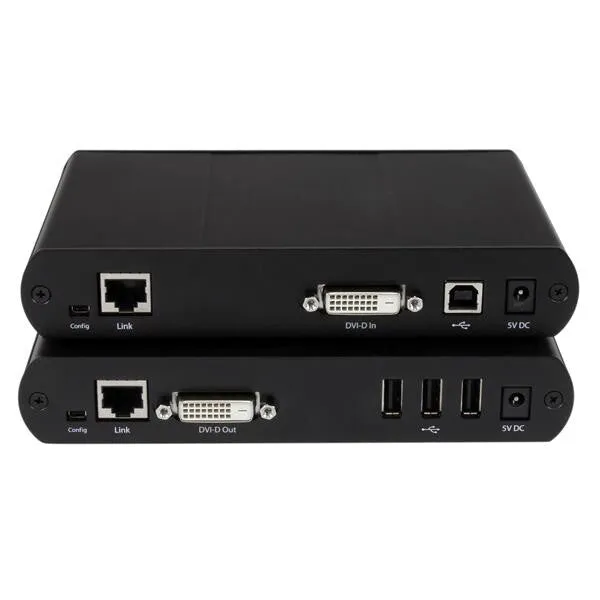

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| RJ-45 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 3 |
| DVI-D ports quantity | 2 |
| Weight & dimensions | |
|---|---|
| Package weight | 2.5 kg |
| Package height | 102 mm |
| Package depth | 376 mm |
| Package width | 213 mm |
| Weight | 857 g |
| Height | 30 mm |
| Depth | 175 mm |
| Width | 118 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
| Manual | Yes |
| Cables included | AC, DVI, USB |
| Power | |
|---|---|
| Power plug type | Type C |
| Output current | 3 A |
| Output voltage | 5 V |
| Input voltage | 100 – 240 V |
| Power consumption (typical) | 15 W |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
