Teltonika RUT200 Cellular network router
- 9 W power supply
- 2 x LTE antennas (SMA male)
- 1 x WiFi antenna (RP-SMA male)
- RUT200 router
- Quick reference guide
- Packaging
- RMS flyer

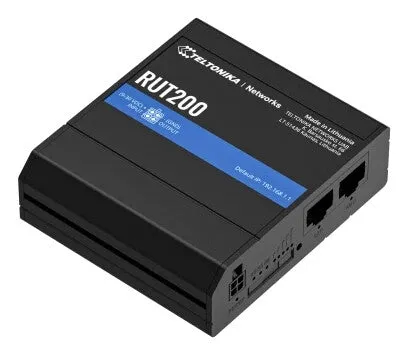

RUT200
INDUSTRIAL CELLULAR ROUTER
RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities.
| Design |
| LED indicators |
LAN, Power |
| Reset button |
Yes |
| Housing material |
Aluminium, Plastic |
| Product colour |
Black |
| Device type |
Cellular network router |
| Ethernet LAN features |
| Supported network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Wireless LAN features |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Mobile network |
| Short Message Service (SMS) |
Yes |
| SIM card type |
MiniSIM |
| 4G standard |
LTE |
| Data network |
2G, 3G, 4G |
| Ports & interfaces |
| USB port |
No |
| Ethernet LAN (RJ-45) ports |
2 |
| Security |
| Port forwarding |
Yes |
| DMZ support |
Yes |
| Firewall |
Yes |
| Network address translation (NAT) |
Yes |
| Security algorithms |
AES-CCMP, TKIP, WEP, WPA-EAP, WPA-PSK, WPA2-Enterprise-PEAP, WPA2-PSK |
| Certificates |
| Certification |
CB |
| Performance |
| Antennas quantity |
3 |
| Antenna connector type |
SMA/RP-SMA |
| Web-based management |
Yes |
| Operating system installed |
RutOS |
| RAM type |
DDR2 |
| RAM capacity |
0.128 GB |
| Processor frequency |
0.58 GHz |
| Processor manufacturer |
MediaTek |
| Built-in processor |
Yes |
| Power |
| Power source type |
DC |
| Operational conditions |
| Operating temperature (T-T) |
-40 – 75 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Weight & dimensions |
| Weight |
125 g |
| Height |
25 mm |
| Depth |
74 mm |
| Width |
83 mm |
