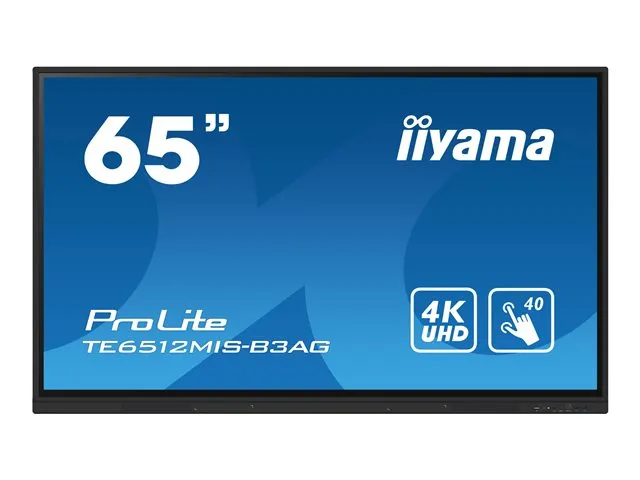

TieDex UK iiyama ProLite TE6512MIS-B3AG 65″ Class (64.5″ viewable) LED-backlit LCD display – 4K – for digital signage / interactive communication
iiyama ProLite TE6512MIS-B3AG – 65″ Diagonal Class (64.5″ viewable) LED-backlit LCD display – interactive digital signage – with touchscreen (multi touch) / optional slot-in PC capability – 4K UHD (2160p) 3840 x 2160 – black bezel with matte finish – with iiyama WiFi module (OWM002)
Basic Specifications
- Manufacturer’s Part Number
- TE6512MIS-B3AG
- EAN
- 4948570123698
- Product Type
- LED-backlit LCD flat panel display with touchscreen (multi touch) / optional slot-in PC capability
- Product Description
- iiyama ProLite TE6512MIS-B3AG 65″ Class (64.5″ viewable) LED-backlit LCD display – 4K – for digital signage / interactive communication
- HDMI Ports Qty
- 3 ports
- LCD Backlight Technology
- LED backlight
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Power Consumption Operational
- 138 Watt
- Model
- iiyama ProLite TE6512MIS-B3AG
- Speaker System
- 2 speakers
- PC Interface
- HDMI, VGA (HD-15), USB-C 3.2
- Dimensions (WxDxH) – without stand
- 148.85 cm x 8.75 cm x 89.65 cm
- Display Format
- 4K UHD (2160p)
- Energy Class
- Class G
- USB
- Yes
- Diagonal Class
- 65″
- Video Interface
- HDMI
- Commercial Use
- Interactive
- Environmental Standards
- ENERGY STAR Qualified
- Voltage
- AC 100-240 V (50/60 Hz)
- Technology
- IPS
- Colour
- Black bezel with matte finish
- TV Tuner
- No tuner
- Weight
- 35 kg
- Manufacturer Warranty
- 5-year warranty
- Bundled with
- Iiyama WiFi module (OWM002)
- Power Consumption (On mode)
- 137 W
- Display Resolution
- 4K Ultra HD (2160p)
- Diagonal Size
- 64.5″
- Connectivity
- LAN, Wi-Fi
- Storage Capacity
- 64 GB
- Included Accessories
- Remote control, 4 touch pens, Mounting bracket for NUC, Mounting bracket for webcam
- Power Consumption Stand by
- 0.5 Watt
- Smart
- No
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
Manufacturer Warranty
- Service & Support
- Limited warranty – 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
Remote Control
- Type
- Remote control
- Battery Included
- Yes
Audio System
- Speaker System
- 2 speakers
- Output Power / Total
- 32 Watt
- Speakers
- 2 x main channel speaker – 16 Watt
Stands & Mounts
- Flat Panel Mount Interface
- 600 x 400 mm
- VESA Compatibility
- Yes
Media Player
- USB Port
- Yes
- Configuration
- ARM Cortex-A55 Quad-Core – 8 GB – 64 GB – Mali G52
Connections
- Connector Type
- 3 x HDMI input ¦ USB-C 3.2 Gen 1 with 65W Power Delivery – front ¦ VGA input ¦ Audio input ¦ RS-232C input ¦ LAN input ¦ Infrared input ¦ HDMI output ¦ SPDIF output ¦ Audio output ¦ 2 x USB 3.2 Gen 1 – front ¦ 2 x USB 3.2 Gen 1 – side ¦ Infrared input ¦ 2 x Gigabit LAN
Display
- LCD Display Technology
- IPS
- Pixel Pitch
- 0.372 mm
- Colour Support
- 1070000000 colours
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- LCD Backlight Technology
- LED backlight
- Coating
- Anti-glare, 3 mm glass, 7H Hard
- Image Contrast Ratio
- 1200:1
- Dynamic Contrast Ratio
- 4000:1
- Brightness
- 400 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Touchpoints Qty
- 40
- Response Time
- 8 ms
- Display Menu Language
- English, German, French, Spanish, Italian, Russian, Czech, Dutch, Polish, Slovenian, Finnish, Danish
- Operation Hours / Days
- 24 / 7
- Features
- PureTouch-IR technology, 92% light transmittance, zero air-gap, 8-bit support, Frame Rate Control (FRC), Open Pluggable Specification slot, OSD key lock, MTBF 50000 hours, blue light reduction, 24/7 operation time, integrated iiWare 10 software, iiyama Device management System (DMS), LAN Control
General
- Product Type
- LED-backlit LCD flat panel display
- Energy Class
- Class G
- Power Consumption Operational
- 138 Watt
- Power Consumption (On mode)
- 137 W
- Power Consumption SDR (On mode)
- 137 kWh/1000h
- Diagonal Class
- 65″
- Diagonal Size
- 64.5″
- Commercial Use
- Yes – interactive digital signage
- Bundled with
- Iiyama WiFi module (OWM002)
- Combined With
- Touchscreen (multi touch) / optional slot-in PC capability
- Operating System
- Android OS 11
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Sensors
- Light sensor, remote sensor
- Video Interface
- HDMI
- HDMI Ports Qty
- 3 ports
- PC Interface
- HDMI, VGA (HD-15), USB-C 3.2
- Modes
- Landscape mode, kiosk mode
- Design
- Metal frame
- Cooling System
- Fanless
- Dimensions
- Without stand
- Width
- 148.85 cm
- Depth
- 8.75 cm
- Height
- 89.65 cm
- Weight
- 35 kg
- Enclosure Colour
- Black bezel with matte finish
Miscellaneous
- Included Accessories
- 4 touch pens, Mounting bracket for NUC, Mounting bracket for webcam
- Cables Included
- HDMI cable ¦ USB cable
- Compliant Standards
- Plug and Play, CB, TUV Bauart, REACH SvHC, EAC, RoHS, ERP, WEEE, REACH, EPA 8.0, DDC-2B, HDCP 2.1, HDCP 2.2
Power
- Power Device
- Power supply
- Input Voltage
- AC 100-240 V (50/60 Hz)
- Power Consumption Stand by
- 0.5 Watt
- Power Consumption (Off Mode)
- 0.3 Watt
Dimensions & Weight (Shipping)
- Width (Shipping)
- 162.8 cm
- Depth (Shipping)
- 20.8 cm
- Height (Shipping)
- 100.5 cm
- Weight (Shipping)
- 44.7 kg
Network & Internet Multimedia
- Functionality
- Digital video playback, cloud storage playback, Internet video playback, WEB browsing
- Connectivity
- LAN, Wi-Fi
- LAN Protocol
- Gigabit Ethernet
- Wi-Fi Protocol
- 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
- Bluetooth Version
- Bluetooth 5.0
- Connect & Share
- Iiyama Share, EShare
Sustainability Information
- ENERGY STAR Certified
- Yes
