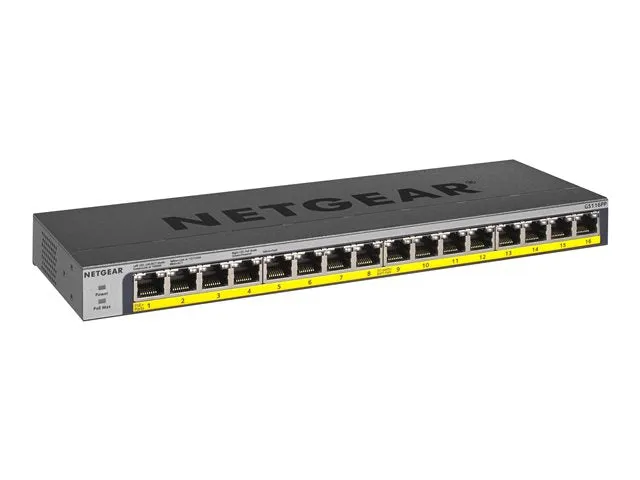

TieDex UK NETGEAR GS116PP – switch – 16 ports – unmanaged – rack-mountable
NETGEAR GS116PP – Switch – unmanaged – 16 x 10/100/1000 (PoE+) – desktop, rack-mountable, wall-mountable – PoE+ (183 W) – DC power
Basic Specifications
- Manufacturer’s Part Number
- GS116PP-100EUS
- EAN
- 0606449133332
- Manufacturer Warranty
- NETGEAR lifetime warranty
- Weight
- 880 g
- Product Description
- NETGEAR GS116PP – switch – 16 ports – unmanaged – rack-mountable
- Model
- NETGEAR GS116PP
- Dimensions (WxDxH)
- 28.6 cm x 10.2 cm x 2.7 cm
- Localisation
- United Kingdom, Europe
- Features
- Flow control, full duplex capability, store and forward, WFQ, QoS, Jumbo Frames support, fanless, Energy Efficient Ethernet, 1MB packet buffer, CoS, DSCP support, EEE, WRR
- Power
- DC 54 V
- Device Type
- Switch – 16 ports – unmanaged
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- MAC Address Table Size
- 4K entries
- Subtype
- Gigabit Ethernet
- Performance
- Bandwidth: 32 Gbps
- Enclosure Type
- Rack-mountable
- Ports
- 16 x 10/100/1000 (PoE+)
- PoE Budget
- 183 W
- Power Over Ethernet (PoE)
- PoE+
General
- Device Type
- Switch – 16 ports – unmanaged
- Enclosure Type
- Desktop, rack-mountable, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 16 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 183 W
- Performance
- Bandwidth: 32 Gbps
- MAC Address Table Size
- 4K entries
- Features
- Flow control, full duplex capability, store and forward, WFQ, QoS, Jumbo Frames support, fanless, Energy Efficient Ethernet, 1MB packet buffer, CoS, DSCP support, EEE, WRR
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Power, PoE, link/activity/speed
Dimensions & Weight
- Width
- 28.6 cm
- Depth
- 10.2 cm
- Height
- 2.7 cm
- Weight
- 880 g
Miscellaneous
- Included Accessories
- Wall mounting kit
- Rack Mounting Kit
- Included
- MTBF
- 2,088,514 hours
- Compliant Standards
- UL, cUL, UL 60950-1 Second Edition, CNS 13438, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 B Class A, KN32, KN35, EN 55032:2012+AC:2013 Class A, CNS 14336-1, ANSI C63.4-2014, CAN/CSA C22.2 No. 60950-1-07 Second Edition 2014, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2015 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- Localisation
- United Kingdom, Europe
Manufacturer Warranty
- Service & Support
- Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – lifetime
Expansion / Connectivity
- Interfaces
- 16 x 1000Base-T RJ-45 PoE+
Power
- Power Device
- External power adapter
- Power Provided
- 200 Watt
- Voltage Required
- DC 54 V
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
