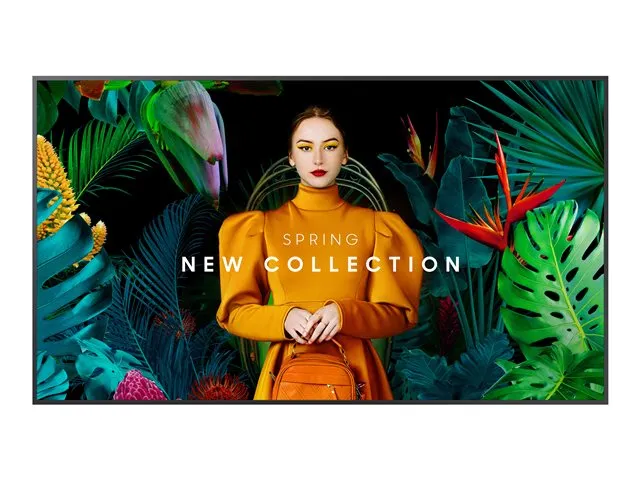

TieDex UK Samsung QH65C QHC Series – 65″ Class (64.5″ viewable) LED-backlit LCD display – Crystal UHD – 4K – for digital signage
Samsung QH65C – 65″ Diagonal Class (64.5″ viewable) – QHC Series LED-backlit LCD display – Crystal UHD – digital signage – Tizen OS – 4K UHD (2160p) 3840 x 2160 – Edge LED – black
Basic Specifications
- Manufacturer’s Part Number
- LH65QHCEBGCXEN
- EAN
- 8806094975017
- Product Type
- LED-backlit LCD flat panel display – Crystal UHD
- Product Description
- Samsung QH65C QHC Series – 65″ Class (64.5″ viewable) LED-backlit LCD display – Crystal UHD – 4K – for digital signage
- HDMI Ports Qty
- 3 ports
- LCD Backlight Technology
- LED backlight – Edge LED
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Power Consumption Operational
- 148 Watt
- Model
- Samsung QH65C
- Speaker System
- 2 channel
- PC Interface
- DisplayPort
- Dimensions (WxDxH) – without stand
- 145.68 cm x 2.85 cm x 83.19 cm
- Display Format
- 4K UHD (2160p)
- Energy Class
- Class G
- USB
- 2 ports
- Diagonal Class
- 65″
- Video Interface
- HDMI
- Commercial Use
- Digital signage
- Environmental Standards
- ENERGY STAR Qualified, EPEAT Bronze
- Voltage
- AC 100-240 V (50/60 Hz)
- Technology
- VA
- Colour
- Black
- TV Tuner
- No tuner
- Weight
- 22.7 kg
- Display Resolution
- 4K Ultra HD (2160p)
- Diagonal Size
- 64.5″
- Connectivity
- Wi-Fi, LAN, Bluetooth
- Platform
- Tizen OS
- Picture Enhancements
- Mega Dynamic Contrast Ratio, Dynamic Crystal Color, Intelligent UHD upscaling, 72% Colour Gamut NTSC
- Storage Capacity
- 16 GB (available 10 GB)
- Commercial Features
- SMART Signage Platform, Auto Source Switching & Recovery, Tizen Zero Config, Tizen Business Manager, MagicInfo S10 Player, Custom Home, Tizen Enterprise Platform, Samsung VXT CMS, Home UI, Chromium M94 Web Engine (upgradeable), Microsoft 365, VMWare, 11th generation SoC (Pontus ML)
- Included Accessories
- Remote control
- Power Consumption Stand by
- 0.5 Watt
- Smart
- No
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 80% (non-condensing)
Remote Control
- Type
- Remote control
- Battery Included
- Yes
Audio System
- Speaker System
- 2 channel
- Output Power / Total
- 20 Watt
Stands & Mounts
- Stand
- Optional
- Flat Panel Mount Interface
- 400 x 300 mm
- VESA Compatibility
- Yes
Media Player
- USB Port
- Yes
- USB Ports Qty
- 2
- Configuration
- ARM Cortex-A73 Quad-Core ( 1.6 GHz ) – 2.5 GB LPDDR4 – 16 GB (available 10 GB)
Connections
- Connector Type
- 3 x HDMI input ¦ DisplayPort input ¦ 2 x USB 2.0 ¦ Audio line-out ¦ RS-232 input ¦ RS-232 output ¦ LAN
Display
- LCD Display Technology
- VA
- Pixel Pitch
- 0.372 mm
- Colour Support
- 16700000 colours
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- LCD Backlight Technology
- LED backlight – Edge LED
- Coating
- Anti-glare, 25% Glass Haze
- Image Contrast Ratio
- 4000:1
- Brightness
- 700 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Response Time
- 8 ms
- Commercial Features
- SMART Signage Platform, Auto Source Switching & Recovery, Tizen Zero Config, Tizen Business Manager, MagicInfo S10 Player, Custom Home, Tizen Enterprise Platform, Samsung VXT CMS, Home UI, Chromium M94 Web Engine (upgradeable), Microsoft 365, VMWare, 11th generation SoC (Pontus ML)
- Operation Hours / Days
- 24 / 7
- Features
- Smart Calibration, key lock, Workspace
General
- Product Type
- LED-backlit LCD flat panel display – Crystal UHD
- Energy Class
- Class G
- Power Consumption Operational
- 148 Watt
- Power Consumption SDR (On mode)
- 148 kWh/1000h
- Diagonal Class
- 65″
- Diagonal Size
- 64.5″
- Commercial Use
- Yes – digital signage
- Series
- QHC Series
- Platform
- Tizen OS
- Operating System
- Tizen OS 7.0
- Video Processor
- Quantum 4K Lite
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Sensors
- Ambient light sensor (ALS), temperature sensor
- Video Interface
- HDMI
- HDMI Ports Qty
- 3 ports
- PC Interface
- DisplayPort
- Modes
- Pivot Mode, Director Mode, DICOM Simulation Mode
- Picture Enhancements
- Mega Dynamic Contrast Ratio, Dynamic Crystal Color, Intelligent UHD upscaling, 72% Colour Gamut NTSC
- Design
- Slim Design
- Dimensions
- Without stand
- Width
- 145.68 cm
- Depth
- 2.85 cm
- Height
- 83.19 cm
- Weight
- 22.7 kg
- Enclosure Colour
- Black
Miscellaneous
- Cables Included
- RS-232C (IN) adapter
- Compliant Standards
- Plug and Play, EMC Class B, IP5X, HDCP 2.2, IEC/EN 62368-1, Safety 60950-1, Safety 62368-1
Power
- Power Device
- Power supply
- Input Voltage
- AC 100-240 V (50/60 Hz)
- Power Consumption Stand by
- 0.5 Watt
Dimensions & Weight (Shipping)
- Width (Shipping)
- 161.6 cm
- Depth (Shipping)
- 16.4 cm
- Height (Shipping)
- 94.5 cm
- Weight (Shipping)
- 30.2 kg
Network & Internet Multimedia
- Connectivity
- Wi-Fi, LAN, Bluetooth
- LAN Protocol
- Ethernet
- Connect & Share
- Samsung Smart View+
Sustainability Information
- EPEAT Compliant
- EPEAT Bronze
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 8.0
