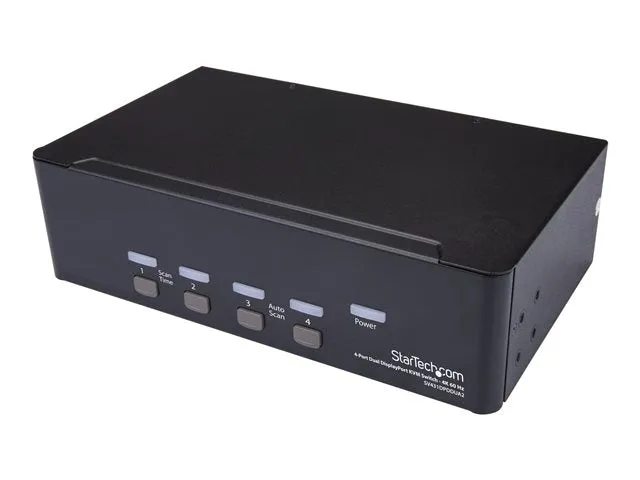

TieDex UK StarTech.com DisplayPort KVM – 4 port – 4K 60Hz – Dual Monitor KVM – DisplayPort Switch – KVM DisplayPort – Desktop KVM Switch (SV431DPDDUA2) – KVM / audio / USB switch – 4 ports – rack-mountable
StarTech.com DisplayPort KVM – 4 port – 4K 60Hz – Dual Monitor KVM – DisplayPort Switch – KVM DisplayPort – Desktop KVM Switch (SV431DPDDUA2) – KVM / audio / USB switch – 4 x KVM / audio / USB – 1 local user – rack-mountable, desktop
Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Applications
- Ideal in environments where high-quality imaging and computing bandwidth are critical, such as graphic design, video editing, medical, CAD drawing
- Operate multiple computers in manufacturing lines or install the KVM switch in your server room, for multi-computer access
This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers
- Maximum productivity with dual-display, multi-computer access
- Full multimedia control with separate 3.5 mm microphone and speaker support
- Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Applications
- Ideal in environments where high-quality imaging and computing bandwidth are critical, such as graphic design, video editing, medical, CAD drawing
- Operate multiple computers in manufacturing lines or install the KVM switch in your server room, for multi-computer access
Basic Specifications
- Manufacturer’s Part Number
- SV431DPDDUA2
- EAN
- 0065030867863
- Manufacturer Warranty
- 2-year warranty
- Weight
- 1.2 kg
- Product Description
- StarTech.com DisplayPort KVM – 4 port – 4K 60Hz – Dual Monitor KVM – DisplayPort Switch – KVM DisplayPort – Desktop KVM Switch (SV431DPDDUA2) – KVM / audio / USB switch – 4 ports – rack-mountable
- Model
- StarTech.com DisplayPort KVM – 4 port – 4K 60Hz – Dual Monitor KVM – DisplayPort Switch – KVM DisplayPort – Desktop KVM Switch (SV431DPDDUA2)
- Dimensions (WxDxH)
- 21.59 cm x 12.7 cm x 6.35 cm
- Colour
- Black
- Localisation
- Australia, Europe, Japan, New Zealand, North Asia, United Kingdom
- Power
- AC 120/230 V
- Device Type
- KVM / audio / USB switch – 4 ports
- Enclosure Type
- Rack-mountable
- Subtype
- KVM
- Ports
- 4 x KVM / audio / USB
- KVM Users Qty
- 1 local user
General
- Device Type
- KVM / audio / USB switch – 4 ports
- Enclosure Type
- Rack-mountable, desktop
- Subtype
- KVM
- Ports
- 4 x KVM / audio / USB
- KVM Local Users Qty
- 1 local user
- Keyboard / Mouse Interface
- USB
- Max Resolution
- 3840 x 2160 @ 60 Hz
- Status Indicators
- Power, port status
Dimensions & Weight
- Width
- 21.59 cm
- Depth
- 12.7 cm
- Height
- 6.35 cm
- Weight
- 1.2 kg
Miscellaneous
- Colour
- Black
- Included Accessories
- 4 rubber feet
- Compliant Standards
- FCC, RoHS
- Localisation
- Australia, Europe, Japan, New Zealand, North Asia, United Kingdom
Manufacturer Warranty
- Service & Support
- Limited warranty – 2 years
Expansion / Connectivity
- Interfaces
- 2 x DisplayPort output ¦ 1 x audio output mini-jack ¦ 1 x microphone output mini-jack ¦ 2 x USB 2.0 Type A ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 4 x USB 2.0 input Type B ¦ 8 x DisplayPort input ¦ 4 x audio input mini-jack ¦ 4 x microphone input mini-jack
Power
- Power Device
- External power adapter
- Power Provided
- DC 12 V – 1.5 A
- Voltage Required
- AC 120/230 V
- Power Consumption Operational
- 18 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 – 80%
- Min Storage Temperature
- -10 °C
- Max Storage Temperature
- 60 °C
