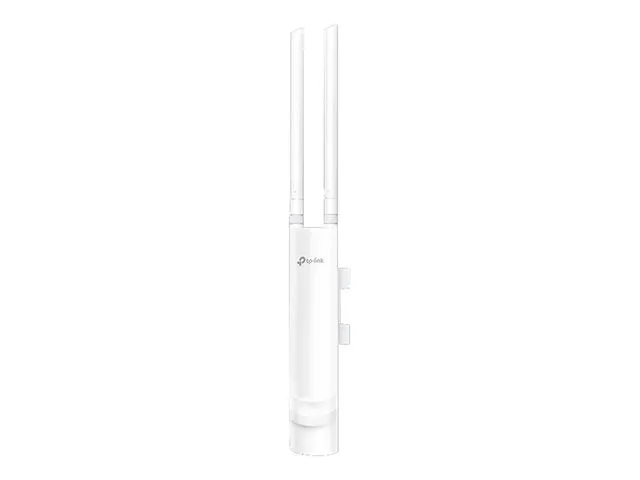

TieDex UK TP-Link EAP225-Outdoor – radio access point – Wi-Fi 5
TP-Link EAP225-Outdoor – Radio access point – Wi-Fi 5 – 2.4 GHz, 5 GHz
Basic Specifications
- Manufacturer’s Part Number
- EAP225-OUTDOOR
- EAN
- 8592978120337
- Product Description
- TP-Link EAP225-Outdoor – radio access point – Wi-Fi 5
- Model
- TP-Link EAP225-Outdoor
- Dimensions (WxDxH)
- 4.6 cm x 2.7 cm x 21.5 cm
- Device Type
- Radio access point
- Form Factor
- External – outdoor
- Capacity
- Maximum number of configured SSIDs: 16
- Frequency Band
- 2.4 GHz, 5 GHz
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Power Over Ethernet (PoE) Supported
- PoE
- Included Accessories
- PoE injector, pole mount, wall mounting kit
General
- Device Type
- Radio access point
- Ruggedized Design
- Outdoor
- Width
- 4.6 cm
- Depth
- 2.7 cm
- Height
- 21.5 cm
Miscellaneous
- Included Accessories
- PoE injector, pole mount, wall mounting kit
- Compliant Standards
- FCC, RoHS
Networking
- Form Factor
- External
- Connectivity Technology
- Wireless
- Data Transfer Rate
- 867 Mbps
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Frequency Band
- 2.4 GHz, 5 GHz
- Capacity
- Maximum number of configured SSIDs: 16
- Wi-Fi Rating
- AC1200
- Features
- Load balancing, E-mail alert, MAC address filtering, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Multiple SSID support, pole mountable, weatherproof, rogue access point detection, Captive Portal, 802.1x authentication, Watch Dog Timer (WDT), Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, scheduler, band steering, SSID to VLAN mapping, rate limit, Wireless Scheduler, VLAN management, Airtime Fairness
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T (PoE) – RJ-45
Power
- Power Over Ethernet (PoE) Supported
- PoE
- Power Consumption Operational
- 10.5 Watt
Environmental Parameters
- Min Operating Temperature
- -30 °C
- Max Operating Temperature
- 70 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
Aerial
- Antenna Qty
- 2
