TP-Link EAP211-BRIDGE KIT bridge/repeater Network bridge 867 Mbit/s White
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.*1
- Ideal for long-range wireless transmission up to 1 km.*2
- Auto-pairing and agile LEDs for efficient deployment

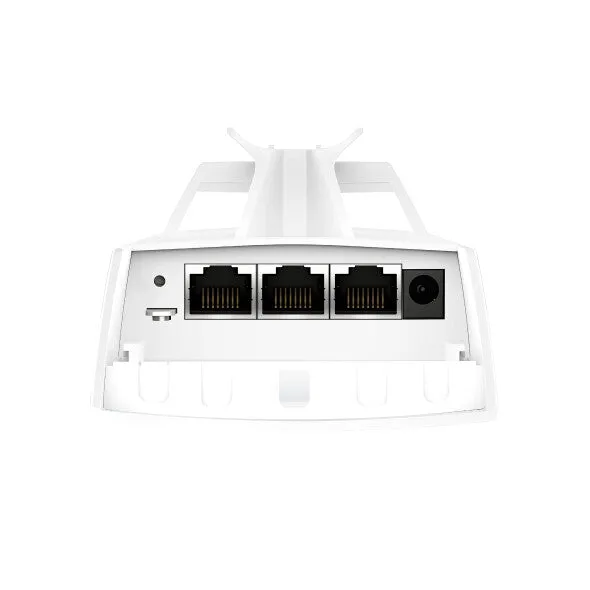

- 3× Gigabit Ethernet ports for more high-speed IP camera connections
- Supports Omada SDN for remote and centralized management
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
- Supports Passive PoE for flexible deployment (adapter included)
Omada Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
- Ideal for long-range wireless transmission up to 1 km.
- Auto-pairing and agile LEDs for efficient deployment.
- 3× Gigabit Ethernet ports for more high-speed IP camera connections.
- Supports Omada SDN for remote and centralized management.
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
- Supports Passive PoE for flexible deployment (adapter included).
| Data transmission |
| Maximum transfer distance |
1000 m |
| Maximum data transfer rate |
867 Mbit/s |
| Antenna |
| Antenna gain level (max) |
7 dBi |
| Antenna type |
2×2 |
| Antenna design |
Internal |
| Wireless LAN features |
| Frequency band |
5 GHz |
| WLAN data transfer rate (max) |
867 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Network |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
3 |
| Management features |
| Web-based management |
Yes |
| Features |
| Reset button |
Yes |
| International Protection (IP) code |
IP65 |
| LED indicators |
Power |
| Product colour |
White |
| Mounting type |
Pole |
| Product type |
Network bridge |
| Power |
| Power over Ethernet (PoE) voltage |
24 V |
| Power over Ethernet (PoE) |
Yes |
| DC input voltage |
12 V |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
-40 – 70 °C |
| Certificates |
| Certification |
CE, FCC, RoHS |
| Weight & dimensions |
| Height |
60 mm |
| Depth |
79 mm |
| Width |
224 mm |
