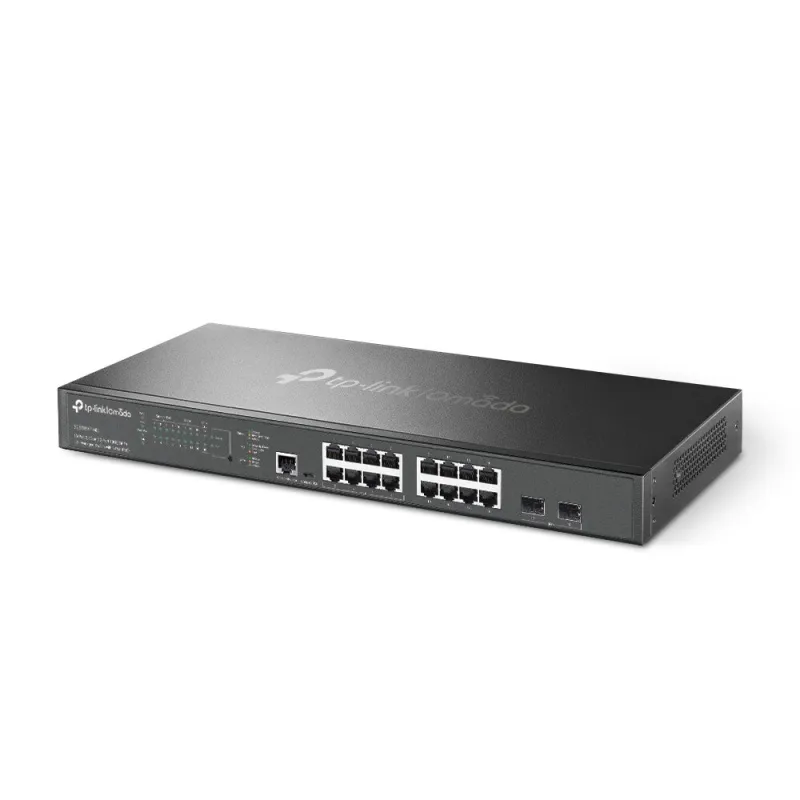

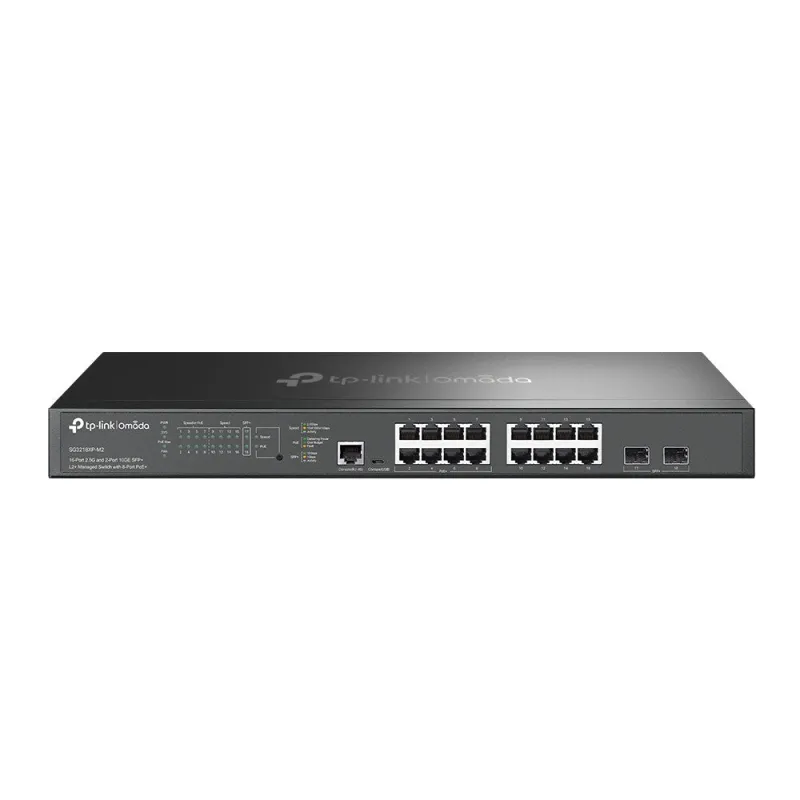

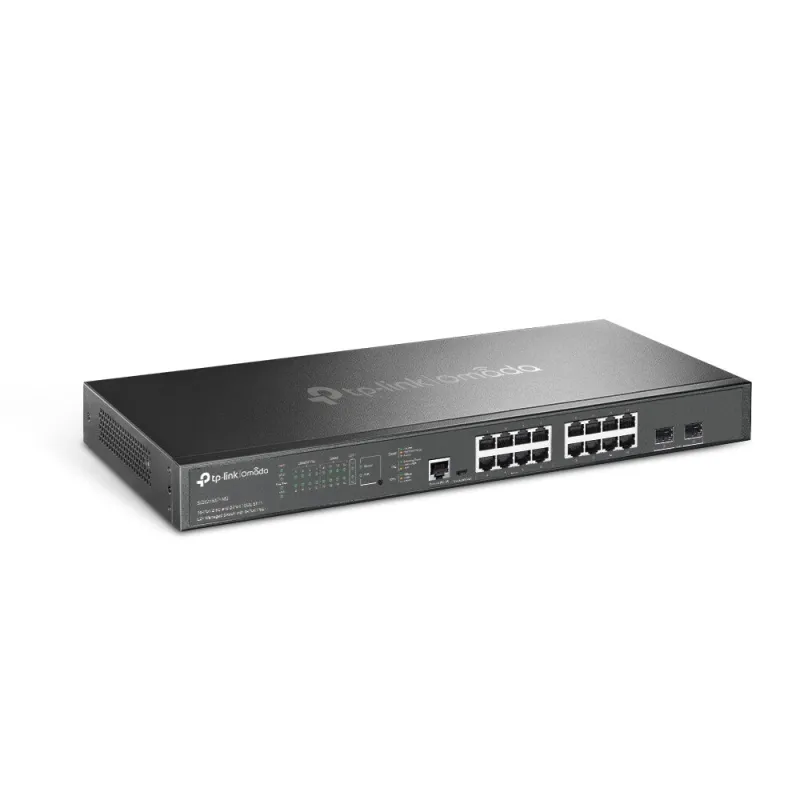

TP-Link Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
- 2.5G Ports for WiFi 7/6E/6: 8× 2.5 Gbps PoE+ ports & 8× 2.5 Gbps Non-PoE ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs
- 10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
- 240 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Static Routing: Helps route internal traffic for more efficient use of network resources
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
Ultrafast 2.5G PoE+ Managed Switch with 10G Uplink for Futuristic Network
2.5G Ports for WiFi 7/6E/6
16× 2.5 Gbps Ports Unlock the Full Potential of WiFi 7/6E/6 APs
10G Lightning-Fast Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
250W PoE Budget
8× PoE+ Ports with Total 250 W Power Budget
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Unlock the Full Potential of WiFi 7/6E/6 with Multi-Gigabit PoE+ Ports
Featuring 8x PoE+ 2.5G ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 7/6E/6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 250W total PoE power budget* and flexible installation to fit in various application scenarios.
Enterprise Switch with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features***
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
| Management features | |
|---|---|
| MIB support | MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB |
| System event log | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | AC-in jack |
| Console port | RJ-45/Micro-USB |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Network | |
|---|---|
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| Data transmission | |
|---|---|
| Packet buffer memory | 12 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of IP interfaces | 32 |
| Number of static routes | 48 |
| Static route | Yes |
| Forwarding rate | 89.28 Mpps |
| Switching capacity | 120 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| Authentication | MAC-based authentication, Port-based authentication |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Static port security | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features | |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| Protocols | |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMP v1/v2c/v3, SNTP |
| Design | |
|---|---|
| Number of fans | 2 fan(s) |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power consumption (max) | 299.4 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 1021.64 BTU/h |
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 180 mm |
| Width | 440 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC |
| Packaging data | |
|---|---|
| Package type | Box |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| General | |
|---|---|
| Product family | Omada |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
