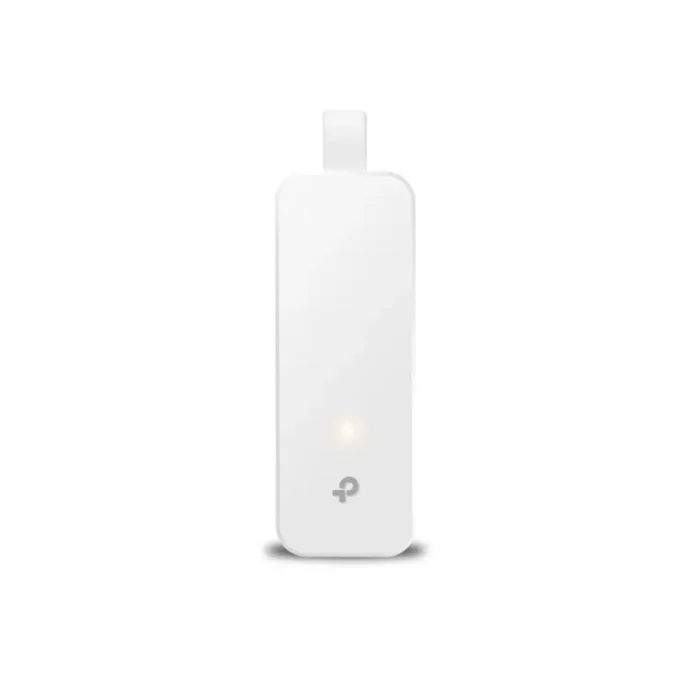

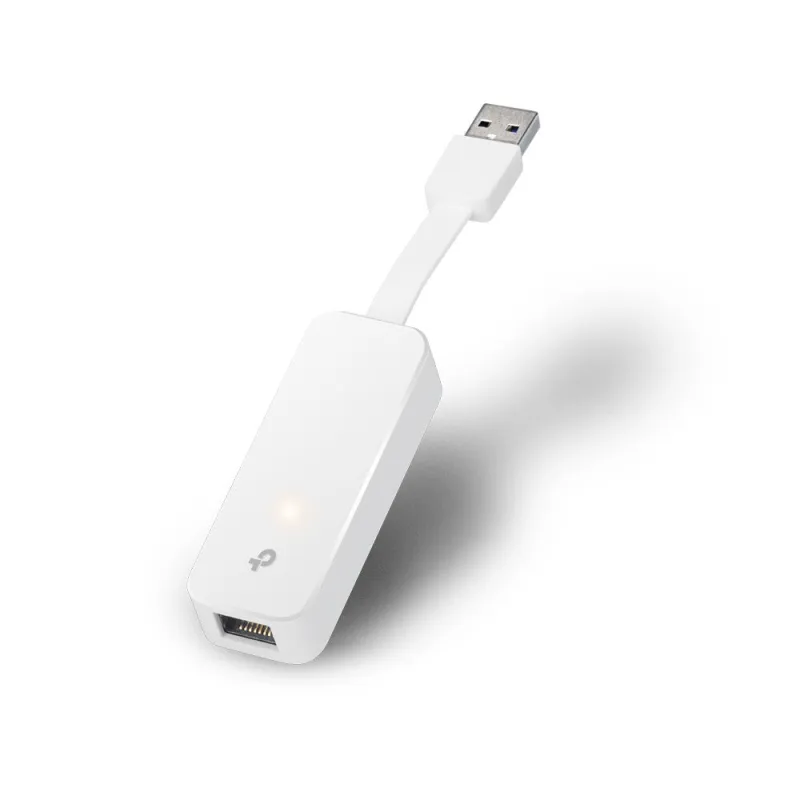

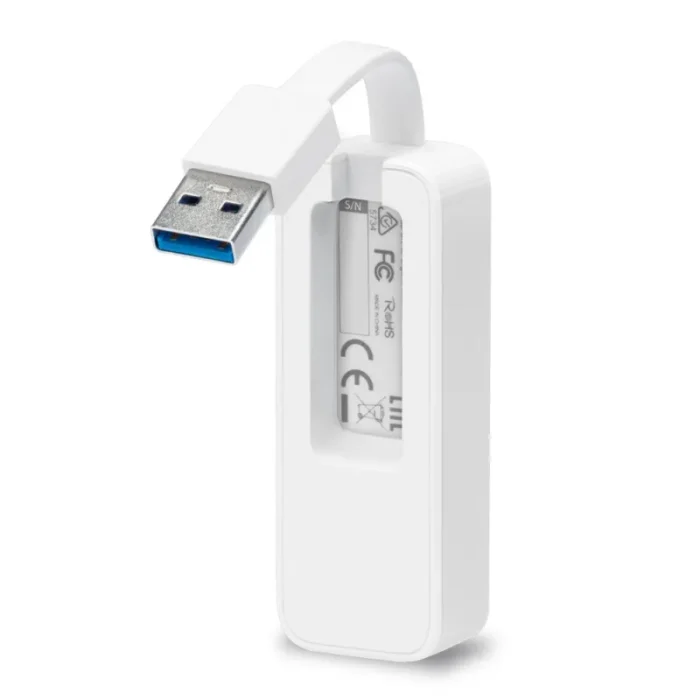

TP-Link UE300 network card Ethernet 1000 Mbit/s
- Fastest USB 3.0 and Gigabit solution ensure high speed transfer rate
- Plug and Play in Windows (XP or later), Mac OS X (10.9 or later), Linux OS. Note: Driver required for Mac OS X (10.5-10.8)
- Foldable and Portable design ideally suits your Ultrabook
Compact and Portable Design
A foldable cord design enables a more convenient way for storage or travelling.
Plug & Play without installing driver
UE300 supports Plug and Play feature for devices running Windows (Windows XP/Vista/7/8/8.1/10), *Mac OS X (10.9/10.10) and Linux OS.
Fast and Stable Data Transfer
Equipped with a USB 3.0 port and Gigabit Ethernet port, UE300 provides a high speed data transfer rate up to 1000 Mbps.
Expand the Connectivity
UE300 adds Gigabit Ethernet network connectivity to those devices without Ethernet LAN port, such as Ultrabook or MacBook Air, through a USB 3.0 port, also being compatible with USB 2.0 and USB1.1 standard.
| Ports & interfaces | |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector form factor | Straight |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | USB |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Wi-Fi | No |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
|---|---|
| LED indicators | Yes |
| Plug and Play | Yes |
| Chipset | Realtek RTL8153 |
| Product colour | White |
| Internal | No |
| Power | |
|---|---|
| USB powered | Yes |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
|---|---|
| Height | 16.2 mm |
| Depth | 26 mm |
| Width | 71 mm |
| Packaging data | |
|---|---|
| Package weight | 52 g |
| Package height | 16 mm |
| Package depth | 85 mm |
| Package width | 183 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
