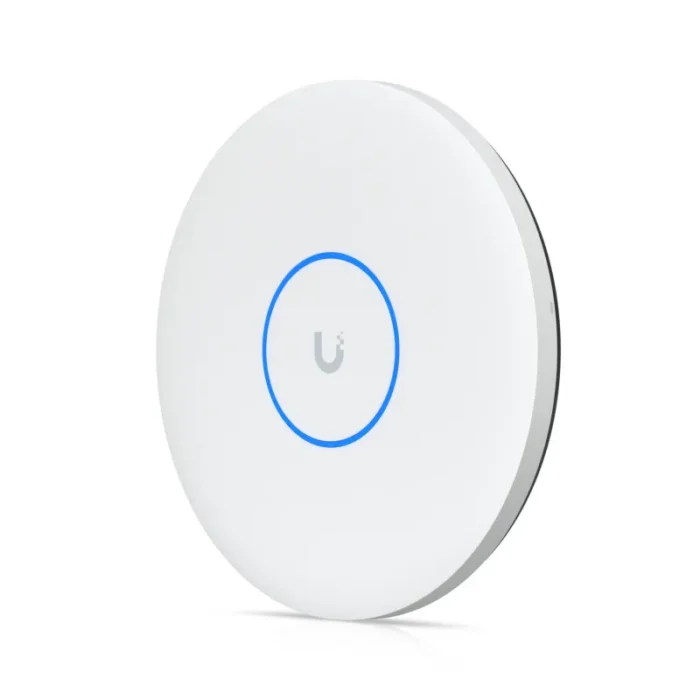

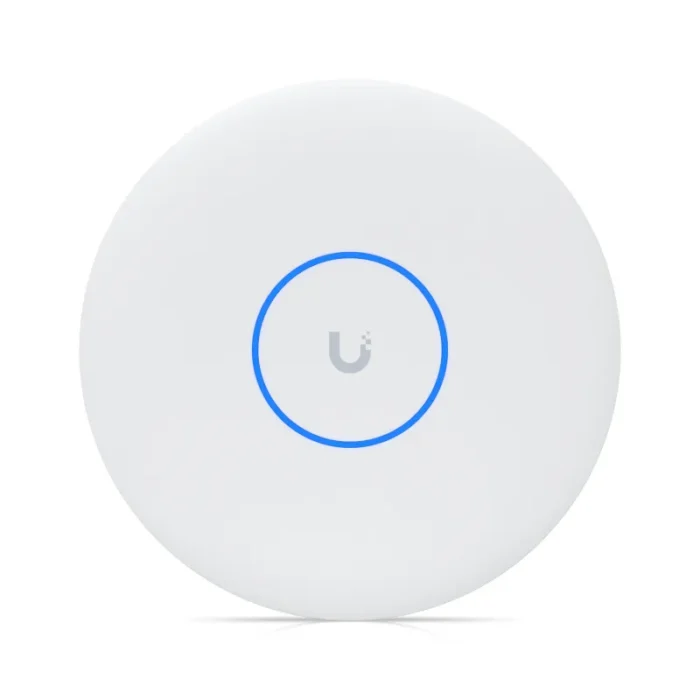

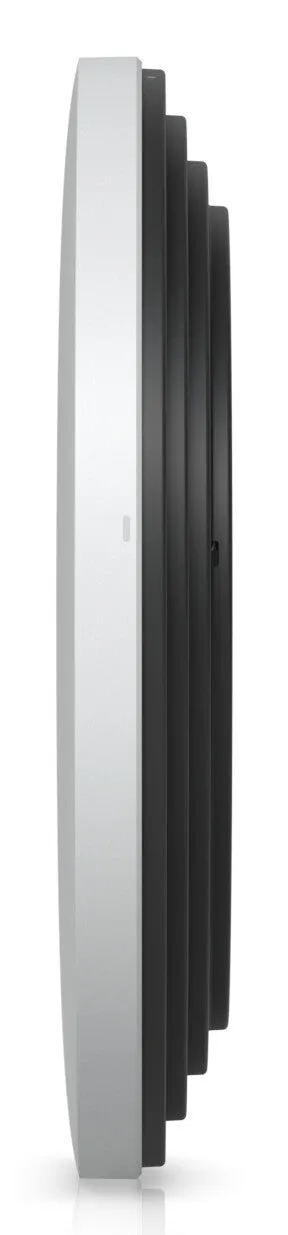

Ubiquiti U7 Pro XGS 8600 Mbit/s White Power over Ethernet (PoE)
- 2.4 GHz 688 Mbit/s
- 5 GHz 8600 Mbit/s
- 6 GHz 5800 Mbit/s
- Maximum data transfer rate: 8600 Mbit/s
- IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
- PPSK
- Power over Ethernet (PoE)
- Internal
Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.
| Features |
| Maximum Tx power (6 GHz) |
24 dBmW |
| Maximum Tx power (5 GHz) |
29 dBmW |
| Maximum Tx power (2.4 GHz) |
23 dBmW |
| Band steering |
Yes |
| Wireless meshing |
Yes |
| Rate limiting |
Yes |
| VLAN support |
Yes |
| Fast roaming |
Yes |
| Fit AP mode features |
Hotspot 2.0 |
| Spatial streams |
8 |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Number of users |
500 user(s) |
| Coverage area |
160 m² |
| Networking standards |
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Frequency band |
2.4, 5, 6 GHz |
| Ethernet LAN data rates |
1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate (6 GHz) |
5800 Mbit/s |
| Maximum data transfer rate (5 GHz) |
8600 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
| Maximum data transfer rate |
8600 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
| Security algorithms |
PPSK |
| Management features |
| Access point management |
Wi-Fi schedule |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power consumption (max) |
29 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
PoE++ (4PPoE) |
| Design |
| LED indicators |
Status |
| Reset button |
Yes |
| Housing material |
Metal, Polycarbonate (PC) |
| Product colour |
White |
| Placement |
Ceiling, Wall |
| Antenna |
| Antenna gain level (max) |
6 dBi |
| Antenna type |
Internal |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight & dimensions |
| Weight |
800 g |
| Height |
215 mm |
| Depth |
32.5 mm |
| Width |
215 mm |
| Packaging content |
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
| Operating temperature (T-T) |
-30 – 40 °C |
| Operating relative humidity (H-H) |
5 – 95% |
