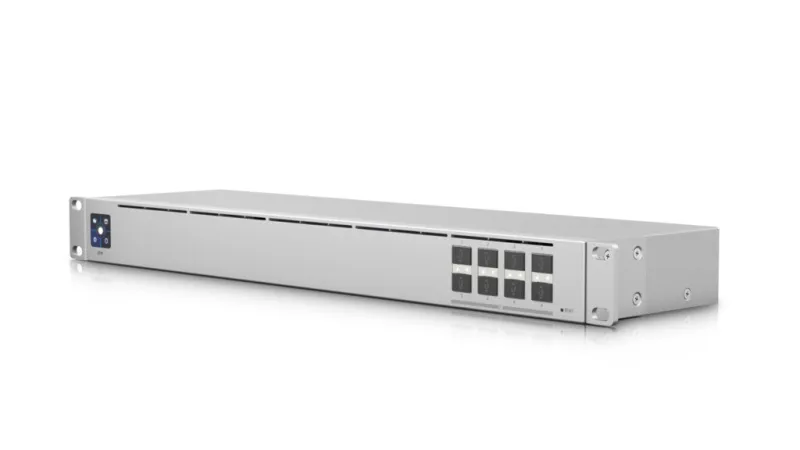

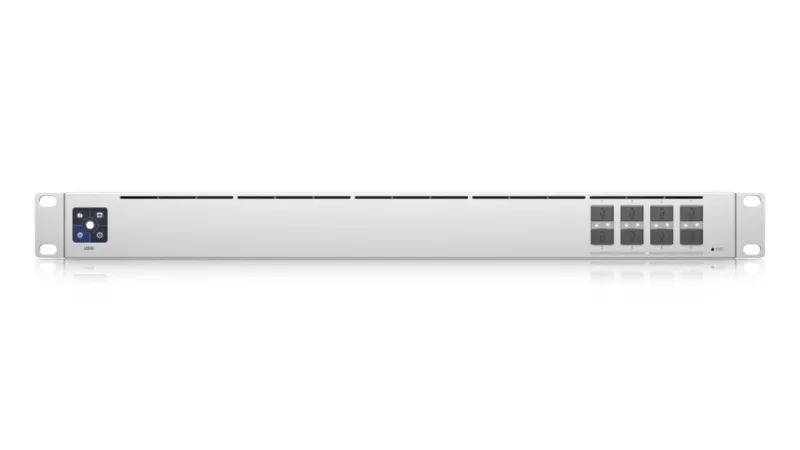

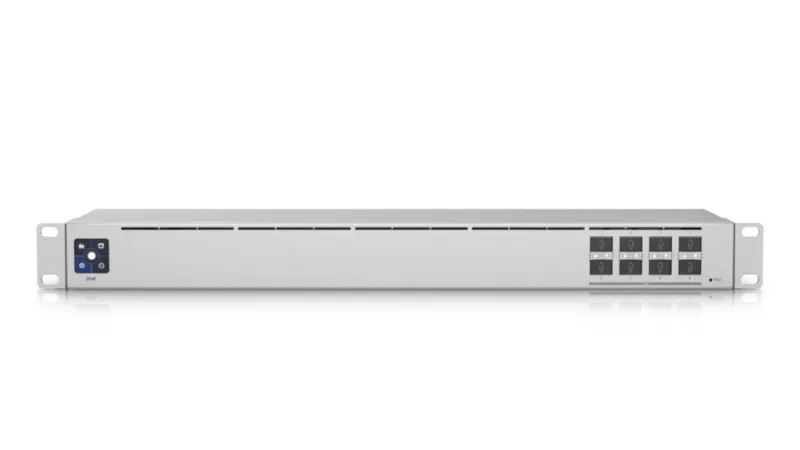

Ubiquiti USW-AGGREGATION network switch Managed L2 1U Silver
- (8) 10G SFP+ Ports
- 160 Gbps switching capacity
- 1.3″ Touchscreen with AR switch management
- Fanless, 4.7″ depth compact enclosure
- 1U Rackmountable (kit included)
Managed layer 2 aggregation switch sporting (8) 10G SFP+ ports for high capacity link aggregation.
The UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7″ depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
| Management features |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| SFP+ module slots quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
No |
| Data transmission |
| Forwarding rate |
119.04 Mpps |
| Switching capacity |
160 Gbit/s |
| Design |
| LED indicators |
System |
| Housing material |
Galvanized steel |
| Product colour |
Silver |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
30 W |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
-5 – 40 °C |
| Weight & dimensions |
| Weight |
2.65 kg |
| Height |
43.7 mm |
| Depth |
120 mm |
| Width |
442.4 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Cables included |
AC |
| Certificates |
| Certification |
CE, FCC, IC |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
