Uponor 2 Port Vario S Flowmeter Manifold | 1086538
Uponor Vario S manifold FM 2×3/4 Euro
1086538

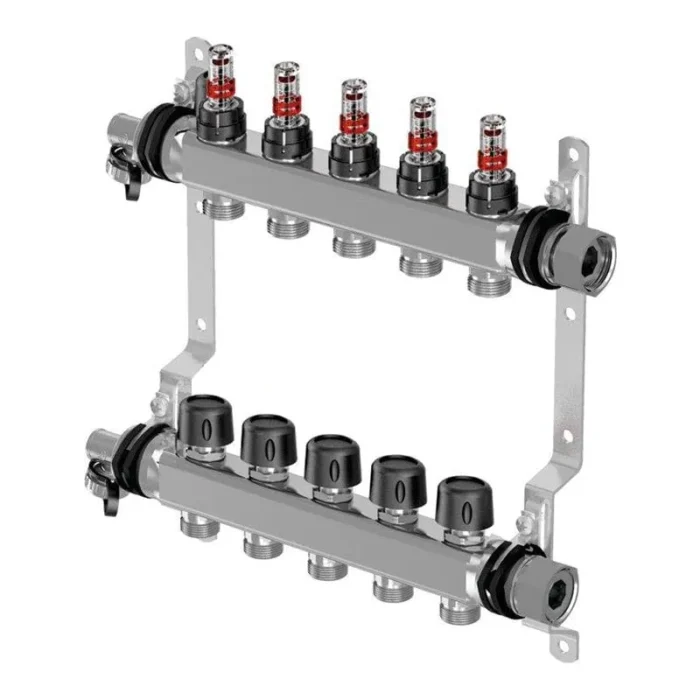

Uponor Vario S is a stainless steel manifold for use in radiant heating and cooling systems. The 3/4 eurocone connectors allow the connection of all Uponor pipe dimensions. Which makes this manifold universal for Uponor underfloor heating and cooling systems. Comes complete with fill and drain points, 1” swivel connectors and valve pins for actuator control.
Application:
The Uponor Vario S Manifold is specifically designed for use of Underfloor heating applications. Its clear flowmeters allow for easy setting of the flowrates for the manifold, they come with a thumb wheel adjust and a locking ring to prevent tampering. Return valve pins come complete with blanking caps for shutting down of loops, this can be automatically driven by the use of thermal actuators. Each manifold comes complete with a fill and drain point at the end of the manifold for easy filling, 1” Ball valves can be fitted at the end of the manifold for complete manifold separation.
Product Specification:
Main body: Pressed Stainless Steel
Main body thread size: 1” BSP flat seal female nut
Outlet thread size: ¾” Eurocone thread
Max flow rate through flowmeter : 1.1 m3/h
Max flowrate through manifold: 3.6 m3/h
Max temperature: 60°C
Max operating pressure: 10 Bar
Max test pressure: 10 Bar ≤30°C Max 24hrs
Ports 2 – 16 ports
