Vertiv Liebert GXT5 / 5 – 10 KVA External battery cabinet
- Ready to connect solution! Offers quick and easy installation with the UPS
- It can be used in proximity to the people, thanks to its sealed characteristics
- In terms of cost per watt hours, it is an inexpensive choice providing efficient power
- Provides sufficient power to the UPS with a capacity of 9000 mAh
- 12 V DC battery can be used as a convenient spare, giving you peace of mind

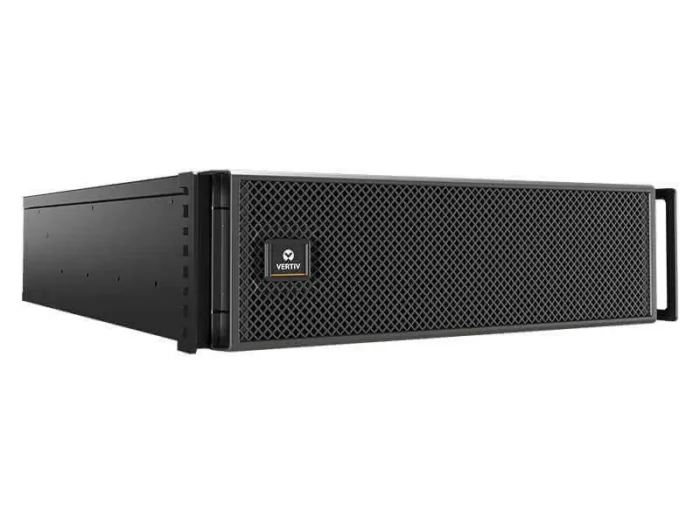

The Vertiv Liebert GXT5-EBC192VRT3U is an external hot-swappable, lead-acid UPS battery cabinet designed for use with these UPS models: Liebert GXT5-5000IRT5UXLE , Liebert GXT5-6000IRT5UXLE, Liebert GXT5-8000IRT5UXLE, and Liebert GXT5-10KIRT5UXLE. Its new auto detection feature makes installation easy and fast ensuring the UPS configuration is complete and accurate. Users can connect to up to 10 external battery cabinets to a single UPS for extended runtime
| Features |
| Power protection features |
Overload |
| Noise level |
55 dB |
| Overload capacity (1 minute) |
150% |
| Overload capacity (5 minute) |
125% |
| Number of output phases |
1 |
| Battery |
| Number of batteries supported |
16 |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| International Protection (IP) code |
IP20 |
| Operational conditions |
| Operating altitude |
0 – 3000 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-15 – 40 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| General |
| Product family |
Liebert |
| Safety regulation & standards |
| Safety |
IEC62040-1:2008 |
| Weight & dimensions |
| Weight |
65 kg |
| Height |
173 mm |
| Depth |
581 mm |
| Width |
430 mm |
| Packaging data |
| Package height |
465 mm |
| Package depth |
840 mm |
| Package width |
670 mm |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
| Other features |
| Output voltage |
230 V |
