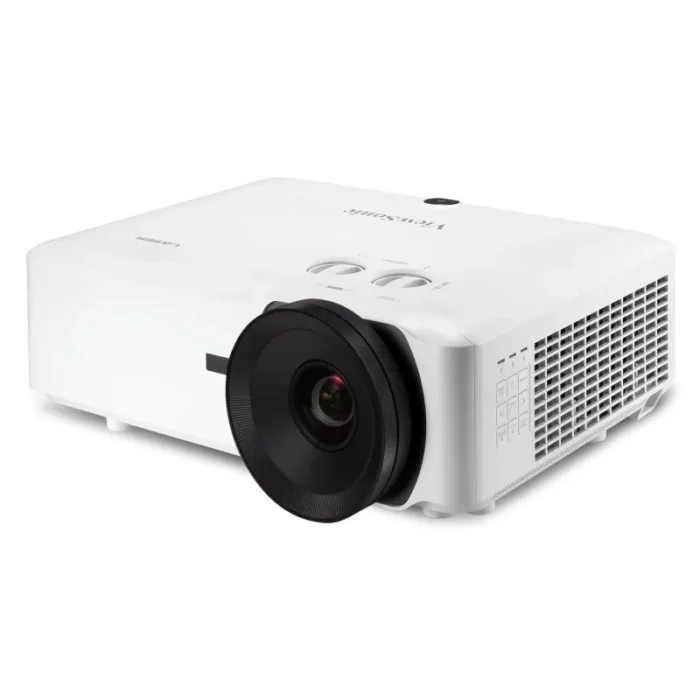

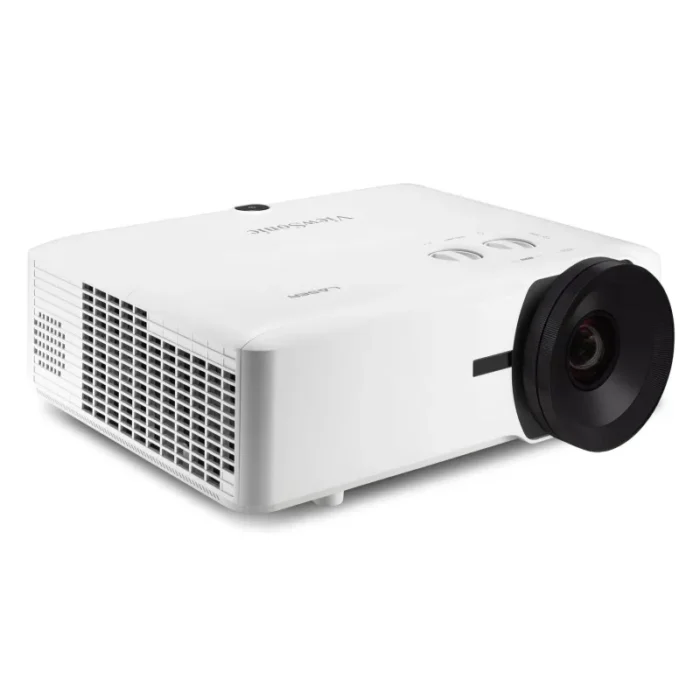

Viewsonic LS921WU data projector Short throw projector 6000 ANSI lumens DMD WUXGA (1920×1200) White
- Bright Images in Large Spaces
- Long-lasting Laser Phosphor Light Source
- No Shadows, No Blinding Lights
- 360-degree Orientation
- Dual HDMI 2.0b with 4K HDR/HLG Support
- One-wire HDBT® Input
LS921WU – 6000 Lumens WUXGA Short Throw Laser Projector with Portrait Mode and Dual HDMI
Bright and versatile for any professional installation, the ViewSonic® LS921WU WUXGA short throw laser projector delivers everything you need for big screens in big venues. Delivering 6,000 ANSI lumens of advanced high brightness, up to 20,000 hours* of light source life, and a screen size of up to 200”, this projector is ideal for auditoriums, restaurants, gyms and other large venues. This top-notch performer is also easy to deploy and manage with its short-throw lens, 1.1x optical zoom adjustment, wide lens shift, 360° projection, and portrait mode that provide extreme flexibility in even the most challenging installations. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG support. In addition, its compact size and built-in HDBaseT deliver the perfect mix of high-quality projection and cost-effectiveness. *Light source life may vary based on actual usage and other factors.
Bright Images in Large Spaces
Packed with 6,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large commercial spaces with high ambient light including auditoriums, convention centers, lecture halls, houses of worship and more.
Long-lasting Laser Phosphor Light Source
Designed with a laser phosphor light source lasting up to 20,000 hours*, this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership.
*Light source lifespan may vary based on actual usage and other factors.
360-degree Orientation
A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor, or mount the projector upside-down at a 45-degree angle if need be.
One-wire HDBT® Input
With an integrated HDBT input, this projector can receive uncompressed HD video and audio over long distances via a single network cable.
Reliable 24/7 Operation
Featuring a long lifespan, this professional-grade projector is designed for reliable, continuous 24/7 use.
Network Monitoring & Control
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron® e-Control™ system and RoomView Express™ management software. Because this projector is Crestron® and AMX® certified, IT admin can control and monitor the projector for any size campus or enterprise.
| Projector | |
|---|---|
| Keystone correction, horizontal | -40 – 40° |
| Keystone correction, vertical | -40 – 40° |
| Horizontal scan range | 15 – 135 kHz |
| Vertical scan range | 23 – 120 Hz |
| Number of colours | 1.07 billion colours |
| Contrast ratio (dynamic) | 3000000:1 |
| Projection distance | 1.04 – 3.83 m |
| Screen size compatibility | 762 – 7620 mm (30 – 300″) |
| Smart projector | No |
| Native aspect ratio | 16:10 |
| Projector native resolution | WUXGA (1920×1200) |
| Projection technology | DMD |
| Projector brightness | 6000 ANSI lumens |
| Light source | |
|---|---|
| Lamps quantity | 2 lamp(s) |
| Lamp power | 74 W |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Offset | 0% |
| Throw ratio | 0.81-0.89 |
| Zoom ratio | 2.0:1 |
| Zoom type | Manual |
| Zoom capability | Yes |
| Aperture range (F-F) | 1.83 – 1.86 |
| Focal length range | 8.6 – 9.4 mm |
| Focus | Manual |
| Video | |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 3840 x 2160 |
| Full HD | Yes |
| Analog signal format system | NTSC, PAL, SECAM |

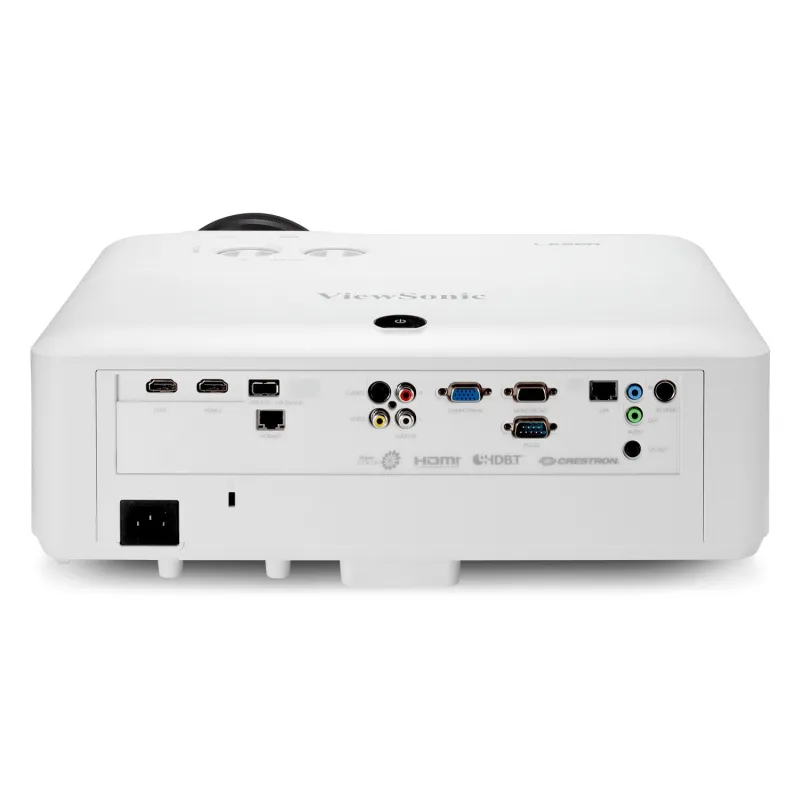

| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| 3D sync port | Yes |
| PC Audio out | Yes |
| PC Audio in | Yes |
| Serial interface type | RS-232 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Audio (L/R) in | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| HDBaseT port | Yes |
| S-Video inputs quantity | 1 |
| Composite video in | 1 |
| DVI port | No |
| HDMI version | 2.0b |
| HDMI connector type | Full-size |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Number of OSD languages | 23 |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| On Screen Display (OSD) | Yes |
| Projection modes | Ceiling, Front, Rear |
| HDCP | Yes |
| Noise level (economic mode) | 29 dB |
| Noise level | 36 dB |
| Interactive | No |
| Multimedia | |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Placement | Desktop, Ceiling |
| Product colour | White |
| Market positioning | Business |
| Product type | Short throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-120 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 450 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 9 kg |
| Package height | 276 mm |
| Package depth | 490 mm |
| Package width | 515 mm |
| Height | 145 mm |
| Depth | 305 mm |
| Width | 405 mm |
| Weight | 6.5 kg |
| Packaging content | |
|---|---|
| Cables included | AC, VGA |
| Manual | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85286200 |
