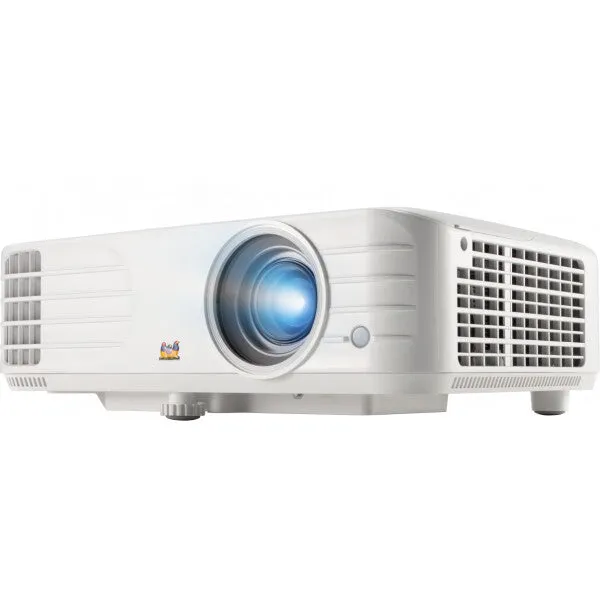

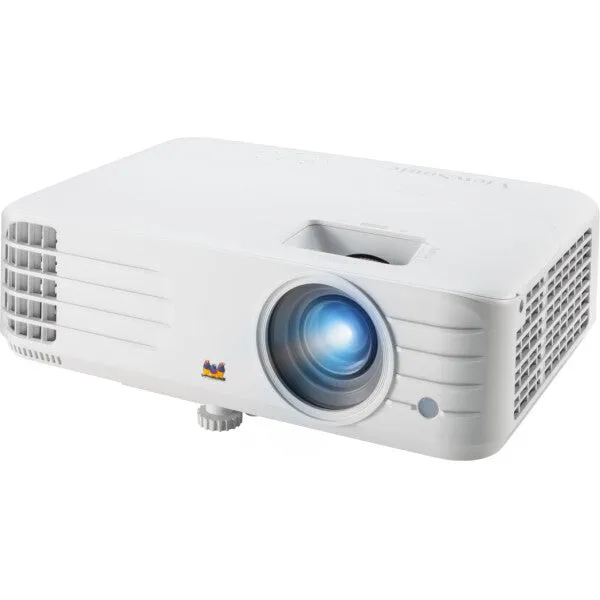

Viewsonic PG706HD data projector Standard throw projector 4000 ANSI lumens DMD 1080p (1920×1080) White
- Presentation Standard throw projector White
- DMD 4000 ANSI lumens
- Lamp 4000 h
- 1080p (1920×1080) 12000:1
- Screen size compatibility: 762 – 7620 mm (30 – 300″) Number of colours: 1.07 billion colours
- Focus: Manual Zoom capability
- Ethernet LAN
- Built-in speaker(s) 10 W
- AC 355 W
PG706HD – 1920 x 1080 Resolution, 4,000 ANSI Lumens, 1.5-1.65 Throw Ratio
The ViewSonic PG706HD 1080p projector features 4,000 lumens, Full HD 1920×1080 native resolution, an intuitive, user-friendly design, and a sleek white chassis. Exclusive SuperColor technology offers a wide color gamut for beautiful image production in nearly any environment. Equipped with Crestron LAN controller, this projector makes it easy for IT admin to remotely control and manage multiple projectors from their workstations. With a shorter throw ratio, 1.2x optical zoom, vertical keystone, and extensive connectivity, the PG706HD provides flexible and quick set-up. What’s more, an energy-saving SuperEco feature reduces power consumption and extends the lamp life by up to 20,000 hours. The PG706HD is the ideal projector for both high-definition presentations and vibrant multimedia entertainment.
BRIGHT IMAGES IN ANY ENVIRONMENT
Packed with 4,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in nearly any environment – even in rooms with high ambient light.
LONG LAMP LIFE
An energy-saving SuperEco feature reduces power consumption and extends the lamp life by up to 20,000 hours.
NETWORK MONITORING & CONTROL
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. Because this projector is Crestron and AMX certified, IT admin can control and monitor the projector for any size campus or enterprise.
SUPERCOLOR: AMAZING COLOR ACCURACY
ViewSonic’s proprietary SuperColor Technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range and stunningly beautiful images.
| Projector | |
|---|---|
| Keystone correction, horizontal | -40 – 40° |
| Keystone correction, vertical | -40 – 40° |
| Matrix size | 1.19 cm (0.47″) |
| Horizontal scan range | 15 – 102 kHz |
| Vertical scan range | 23 – 120 Hz |
| Number of colours | 1.07 billion colours |
| Projection distance | 1 – 10.96 m |
| Screen size compatibility | 762 – 7620 mm (30 – 300″) |
| Contrast ratio (typical) | 12000:1 |
| Projector native resolution | 1080p (1920×1080) |
| Projection technology | DMD |
| Projector brightness | 4000 ANSI lumens |
| Light source | |
|---|---|
| Lamps quantity | 1 lamp(s) |
| Lamp power | 245 W |
| Service life of light source (economic mode) | 20000 h |
| Service life of light source | 4000 h |
| Light source type | Lamp |
| Lens system | |
|---|---|
| Offset | 110% |
| Throw ratio | 1.5-1.65 |
| Zoom ratio | 2.0:1 |
| Zoom capability | Yes |
| Aperture range (F-F) | 2 – 2.05 |
| Focal length range | 15.843 – 17.445 mm |
| Focus | Manual |
| Video | |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Full HD | Yes |
| Analog signal format system | NTSC, PAL, SECAM |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| PC Audio out | Yes |
| PC Audio in | Yes |
| Serial interface type | RS-232 |
| USB 2.0 ports quantity | 1 |
| S-Video inputs quantity | 1 |
| Composite video in | 1 |
| DVI port | No |
| HDMI version | 1.4 |
| HDMI connector type | Full-size |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Number of OSD languages | 20 |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| On Screen Display (OSD) | Yes |
| HDCP | Yes |
| Noise level (economic mode) | 27 dB |
| Noise level | 32 dB |
| Interactive | No |
| Multimedia | |
|---|---|
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Placement | Desktop, Ceiling |
| Product colour | White |
| Market positioning | Presentation |
| Product type | Standard throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 355 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 3.95 kg |
| Package height | 297 mm |
| Package depth | 168 mm |
| Package width | 415 mm |
| Height | 108 mm |
| Depth | 222 mm |
| Width | 312 mm |
| Weight | 2.79 kg |
| Packaging content | |
|---|---|
| Cables included | AC, VGA |
| Manual | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85286200 |
