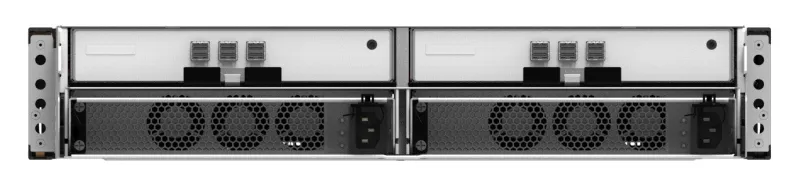

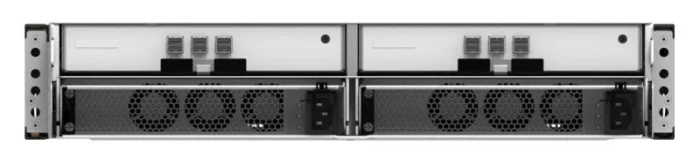

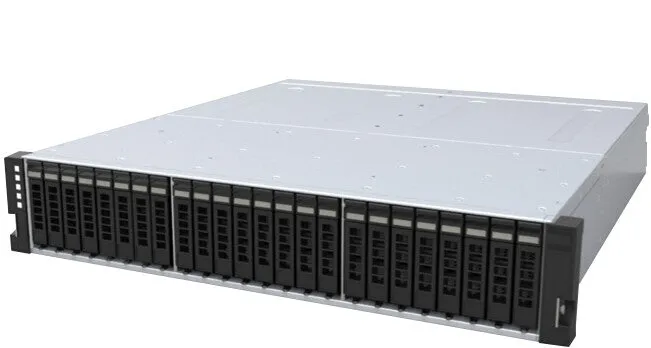

Western Digital 2U24 disk array 11.52 TB Rack (2U) Black, Grey
- Small & Medium Business
- Rack (2U) Black, Grey
- SSD Storage drives installed 11.52 TB
- Hot-swap drive bays
- 600 W
Designed for Software-Defined Storage (SDS) systems, this flash storage platform balances performance with capacity, delivering high IOPS, low latency at up to 184TB capacity.
– High Density – Up to 24 2.5” SAS or SATA SSD modules in a 2U unit
– Scalable – Connect up to six hosts via the 12Gb/s SAS3 interface
– Performance – Up to 4.7M IOPS, 23 GB/s, less than 1ms latency
| Storage |
| Hot-swap drive bays |
Yes |
| Data transfer rate |
12 Gbit/s |
| Supported storage drive interfaces |
SAS-3, Serial ATA III |
| Storage drive size |
2.5″ |
| Storage drive interface |
Serial Attached SCSI (SAS) III |
| Storage drive capacity |
480 GB |
| Number of storage drives supported |
24 |
| Supported storage drive types |
SSD |
| Total installed storage capacity |
11.52 TB |
| Number of storage drives installed |
12 |
| Installed storage drive type |
SSD |
| Storage drives installed |
Yes |
| Ports & interfaces |
| Mini-SAS host port |
Yes |
| Number of mini-SAS host ports |
6 |
| USB connectivity |
No |
| Design |
| Built-in display |
No |
| Redundant fans support |
Yes |
| Noise level |
72 dB |
| Number of fans |
6 fan(s) |
| LED indicators |
Yes |
| Product colour |
Black, Grey |
| Chassis type |
Rack (2U) |
| Device class |
Small & Medium Business |
| Power |
| AC input frequency |
47 / 63 Hz |
| AC input voltage |
90 – 264 V |
| Redundant power supply (RPS) support |
Yes |
| Number of power supply units |
2 |
| Power supply unit (PSU) capacity |
600 W |
| Weight & dimensions |
| Disk enclosure weight |
18.3 kg |
| Height |
87.4 mm |
| Depth |
536 mm |
| Width |
446 mm |
| Operational conditions |
| Operating altitude |
0 – 915 m |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating relative humidity (H-H) |
5 – 85% |
| Operating temperature (T-T) |
5 – 40 °C |
| Logistics data |
| Harmonized System (HS) code |
84717020 |
