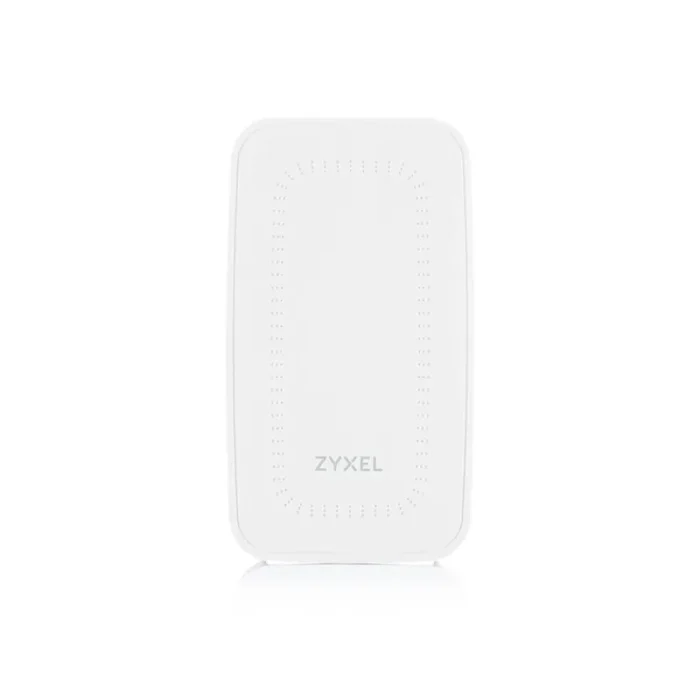

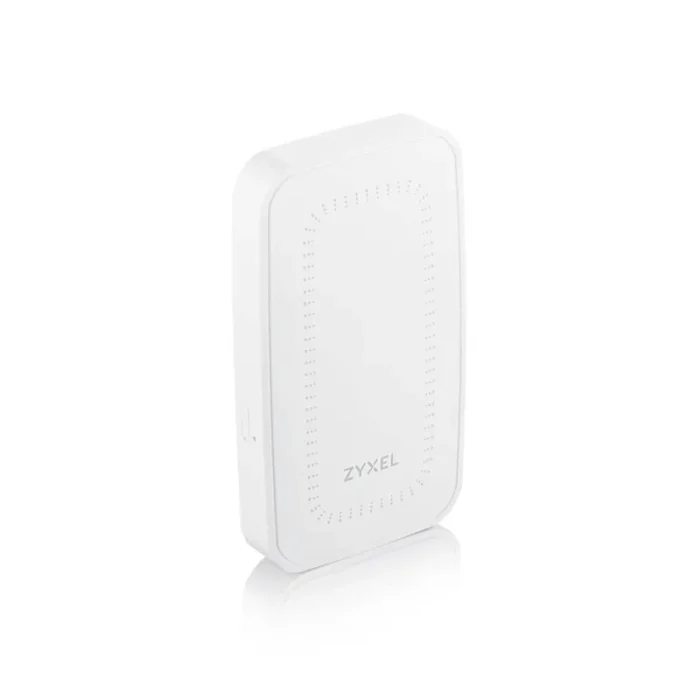

Zyxel WAC500H 1200 Mbit/s White Power over Ethernet (PoE)
- 2.4 GHz 300 Mbit/s
- 5 GHz 866 Mbit/s
- Maximum data transfer rate: 1200 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- EAP, SNMP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3
- Power over Ethernet (PoE)
- Internal
Get not only wireless but wired and PoE connectivity, too
The Zyxel WAC500H is designed for per-room deployment scenarios. It turns an Ethernet wall plate into not only a wireless access point to provide WiFi service but also a Gigabit switch with PoE, powering a VoIP phone for last-mile network services.
Featuring NebulaFlexTM Pro, the WAC500H can be managed through a local web management interface, hardware controller, or with a one-year free license on the Nebula cloud management platform.
Versatile mounting options
The versatile yet low-profile mounting design allows the access point to blend seamlessly and tastefully into any decor while mounted directly on an outlet box, in an out-of-the-way location, or even simply on a desktop.
More than WiFi
As well as providing superb WiFi, the WAC500H supports 24/7 wired and PoE connectivity for mobile Point-of-sale (POS) applications for restaurants, bars, and cafés.
Work from home like a Pro!
Supporting the 802.11ac Wave 2 standards, the WAC500H provides fast and reliable connectivity with full support of video conferencing, secure data transfer and seamless connection of multiple devices.

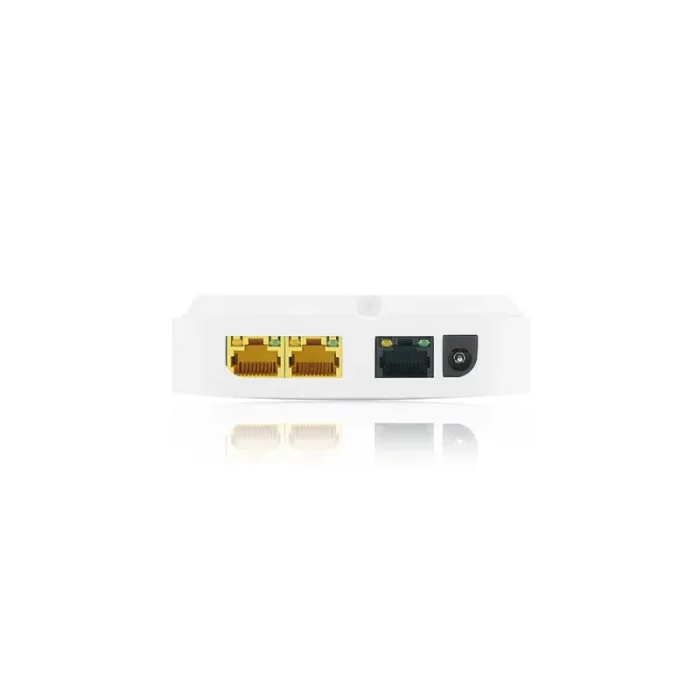

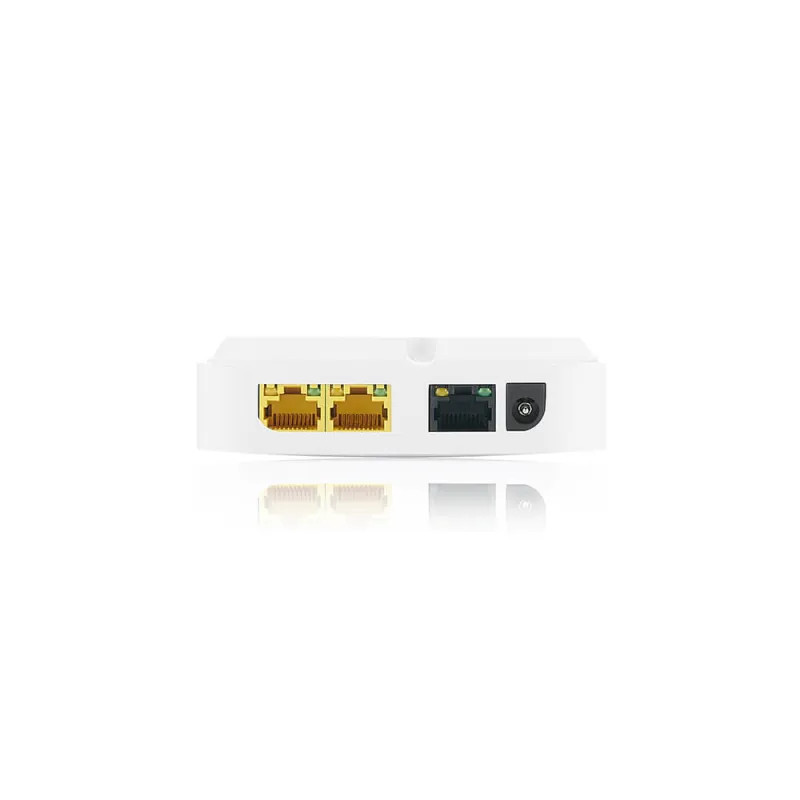

The “RF First” and MU-MIMO technology of WAC500H ensure the high-speed connectivity. And, the two downlink Gigabit Ethernet ports allow an easy connection to a wired printer or powering up a VoIP phone effortlessly.
Most flexible management
The WAC500H features NebulaFlex Pro technology, which allows the AP to be run in three different modes – standalone, controller, or Nebula Cloud Networking platform based on the need of each user. For a straightforward network it can be run in standalone mode, for a complex one that requires advanced features it can be run with an on-premises controller. And, Nebula cloud networking is designed to satisfy all situations with great scalability, feature-rich, and central management.
| Features | |
|---|---|
| Receiver sensitivity | -99 dBm |
| Transmitting power | 26 dBmW |
| Band steering | Yes |
| Wireless isolation | Yes |
| VLAN support | Yes |
| Fast roaming | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Channel bandwidth | 80 MHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 866 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate | 1200 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Auto Wireless Distribution System (WDS) | Yes |
| MAC address filtering | Yes |
| Security algorithms | EAP, SNMP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3 |
| Management features | |
|---|---|
| Command-line interface (CLI) | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Power | |
|---|---|
| Output current | 1 A |
| Output voltage | 12 V |
| Input current | 0.3 A |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Product colour | White |
| Placement | Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Antenna type | Internal |
| Certificates | |
|---|---|
| Certification | FCC 15C, FCC 15E; ETSI EN 300 328, EN 301 893; LP0002, EN 60601-1-2FCC 15B, EN 301 489-1; EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, BSMI CNS13438EN 60950-1, IEC 60950-1; BSMI CNS14336-1 |
| Weight & dimensions | |
|---|---|
| Weight | 223 g |
| Height | 29 mm |
| Depth | 97 mm |
| Width | 173 mm |
| Packaging data | |
|---|---|
| Package weight | 444 g |
| Package height | 53 mm |
| Package depth | 120 mm |
| Package width | 195 mm |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -30 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
