Zyxel WAX300H 2400 Mbit/s White Power over Ethernet (PoE)
- 2.4 GHz 575 Mbit/s
- 5 GHz
- Maximum data transfer rate: 2400 Mbit/s
- WPA, WPA2, WPA3
- Power over Ethernet (PoE)
- Internal
Guaranteed strong Wi-Fi connection in every corner of your hotel room
Greet every guest with easy log-in and flicker-free WiFi is as important as warm smiles. Designed for hotel guest rooms, the Zyxel WAX300H features the latest WiFi 6 technology to provide a superb performance for in-room guests connecting online.
The access point also supports the use of 160MHz channels, doubling the throughput compared to 80MHz channels to accommodate more bandwidth-hungry applications and provide faster speeds.
Superb WiFi 6 performance with 160MHz channels support
AX3000 (2×2:2 in 2.4Ghz and 5Ghz) PoE-powered access point provides maximum data rate of 3000 Mbps with 160MHz channels support to enable seamless and faster connectivity for hotel guests and in-room services.
Extending modern in-room services with a box
Zyxel WAX300H is not only a wireless AP, but also a switch which can support a wide range of in-room services from wired to wireless without the need for extra electrical power ports.

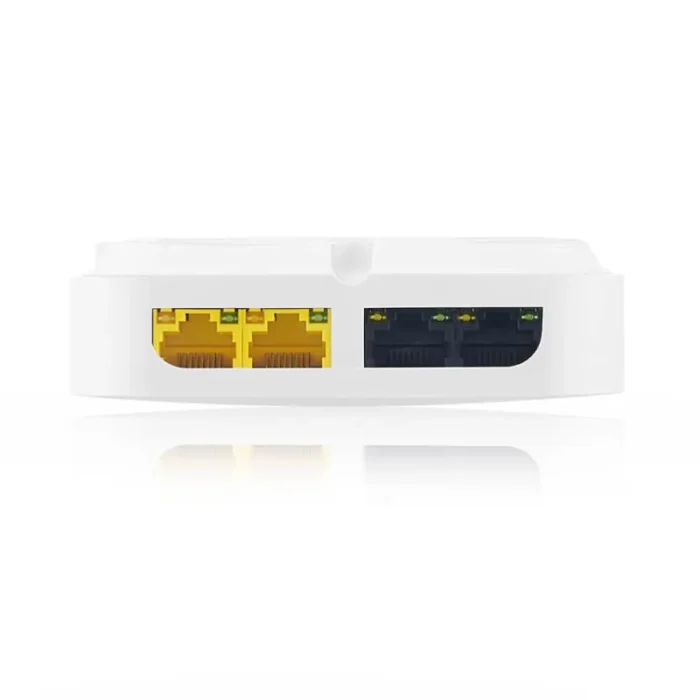

The four Ethernet ports (1 uplink + 3 downlinks) transfer data at Gigabit speeds, allowing you to connect multiple devices to your network. One of the downlink ports provides PoE power for wired services like VoIP phones to keep the budget and cabling effort to the minimum.
Nebula WiFi Aid assists management and deliver the best WiFi user experience
Today’s business and leisure travelers expect to connect high-speed WiFi when stepping into a hotel and would consider internet connectivity the top amenity.
Nebula offers the hotel IT/network admins a powerful tool, WiFi Aid to give comprehensive data and insights to their hotel guests’ WiFi connection issues and the ability to look into them more actively even before their guests make a complaint.
Versatile mounting options
Zyxel WAX300H easily blends into tasteful decorations and can be mounted directly on an outlet box or any obscure locations, even simply on desktop.
For the best aesthetics, the Ethernet cable can run out from the cable channel that keeps WAX300H slim and fit in a limited space.
For desktop mount, the ACCESSORY-ZZ0107F is a desk mount kit perfectly made compatible for Zyxel’s WAX300H access point for an additional option.
| Features | |
|---|---|
| Band steering | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate | 2400 Mbit/s |
| 5 GHz | Yes |
| 6 GHz | No |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| MAC address filtering | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| Management features | |
|---|---|
| Firmware upgradeable | Yes |
| Command-line interface (CLI) | Yes |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Product colour | White |
| Placement | Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Antenna type | Internal |
| Weight & dimensions | |
|---|---|
| Weight | 483 g |
| Height | 53 mm |
| Depth | 120 mm |
| Width | 195 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 10 – 90% |
