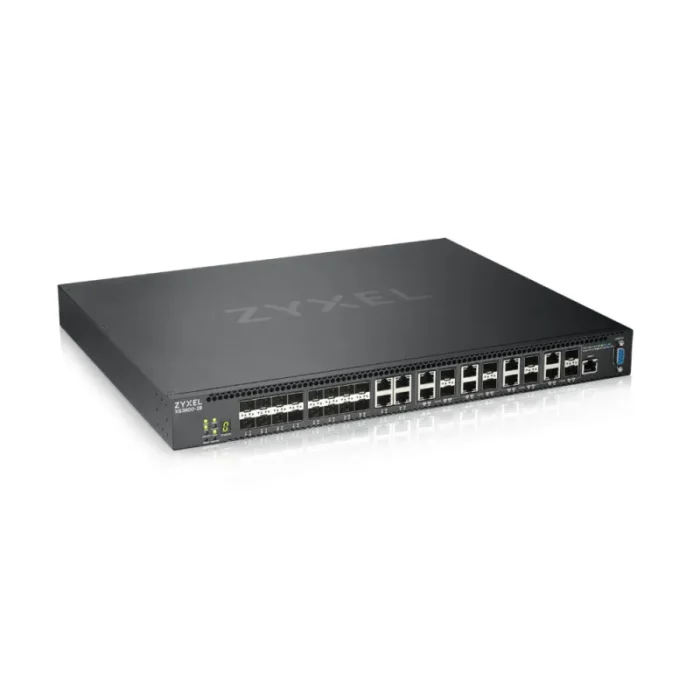

Zyxel XS3800-28 Managed L2+ 10G Ethernet (100/1000/10000) Black
- Managed L2+ Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 4
- 10G support 10GBASE-T, 100BASE-T, 1000BASE-T
- MAC address table: 32000 entries Switching capacity: 560 Gbit/s
- Access Control List (ACL)
- Rack mounting
- Power supply included
Flexible port design
XS3800-28 offers a maximum of 24 10G fiber ports or 12 10G copper ports that are for most flexible adoption to your networks.
Essentials of a core switch
XS3800-28 is suitable for network aggregation such as SMB or campus networks that require low latency and high-density 10G backbone architectures with basic routing capability.
Restore Button
The “Restore” button saves the last workable configuration as the custom default, which allows you to fall back instantly in case of network misconfigurations.
Dual Power
Two PSUs support active-standby power redundancy that triggers backup power supply if the main unit fails.
Designed for the long haul
Quality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS3800-28 for your networks.
| Management features |
| MIB support |
Y |
| Traffic classification |
Yes |
| Traffic shaping |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2+ |
| Switch type |
Managed |
| Ports & interfaces |
| Power connector |
AC-in jack |
| Fiber optic connector |
SFP+ |
| SFP+ module slots quantity |
16 |
| Combo SFP ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Network |
| VLAN support |
Yes |
| Flow control support |
Yes |
| Auto-negotiation |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| IP routing |
Yes |
| Policy-based routing |
Yes |
| Port mirroring |
Yes |
| Copper ethernet cabling technology |
10GBASE-T, 100BASE-T, 1000BASE-T |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| Optical fiber |
| Fiber ethernet cabling technology |
1000BASE-X |
| Data transmission |
| Packet buffer memory |
4 MB |
| Forwarding rate |
416 Mpps |
| Switching capacity |
560 Gbit/s |
| MAC address table |
32000 entries |
| Security |
| Loop protection |
Yes |
| Authentication |
MAC-based authentication |
| MAC address filtering |
Yes |
| Password protection |
Yes |
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| IGMP snooping |
Yes |
| IGMP proxy |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP server |
| Multicast features |
| Multicast support |
Yes |
| Design |
| Reset button |
Yes |
| Product colour |
Black |
| Rack mounting |
Yes |
| Performance |
| Mean time between failures (MTBF) |
656274.78 h |
| Flash memory |
64 MB |
| Internal memory |
8000 MB |
| Power |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Number of power supply units |
2 |
| Redundant power supply (RPS) support |
Yes |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Storage relative humidity (H-H) |
10 – 95% |
| Operating relative humidity (H-H) |
10 – 95% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Weight & dimensions |
| Weight |
4.81 kg |
| Height |
44 mm |
| Depth |
340 mm |
| Width |
441 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Cables included |
AC |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
